NEW FOR 2024

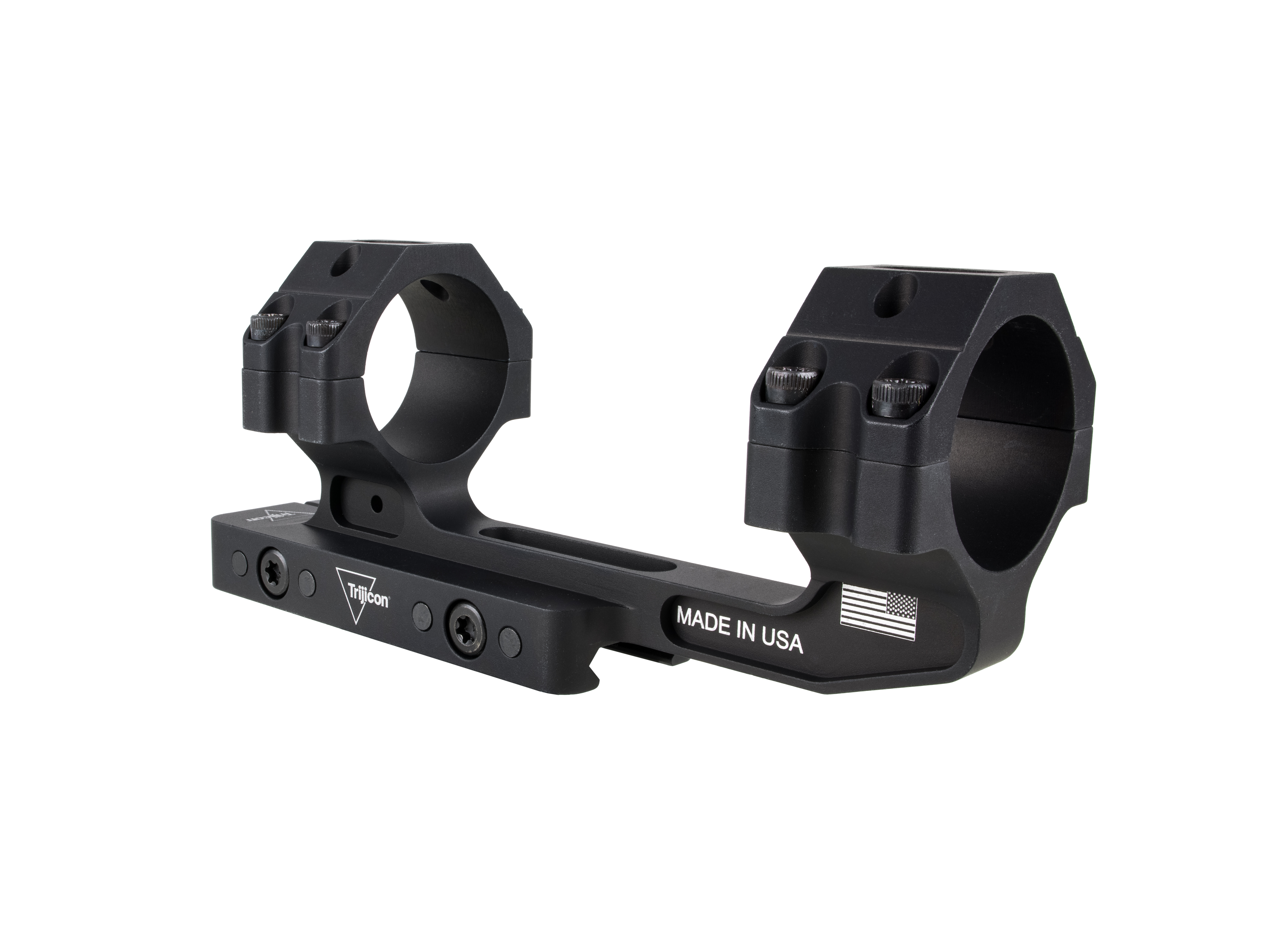

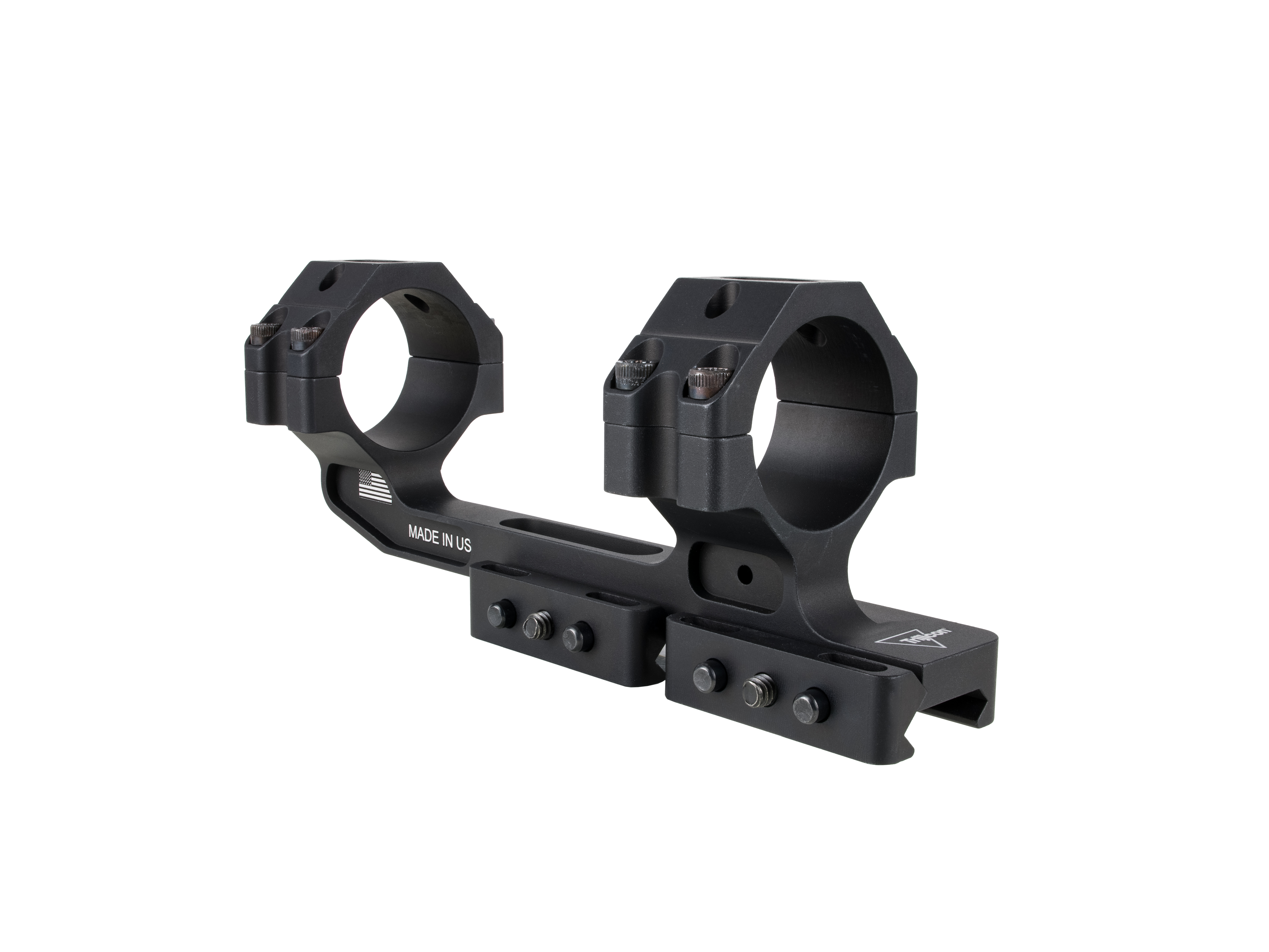

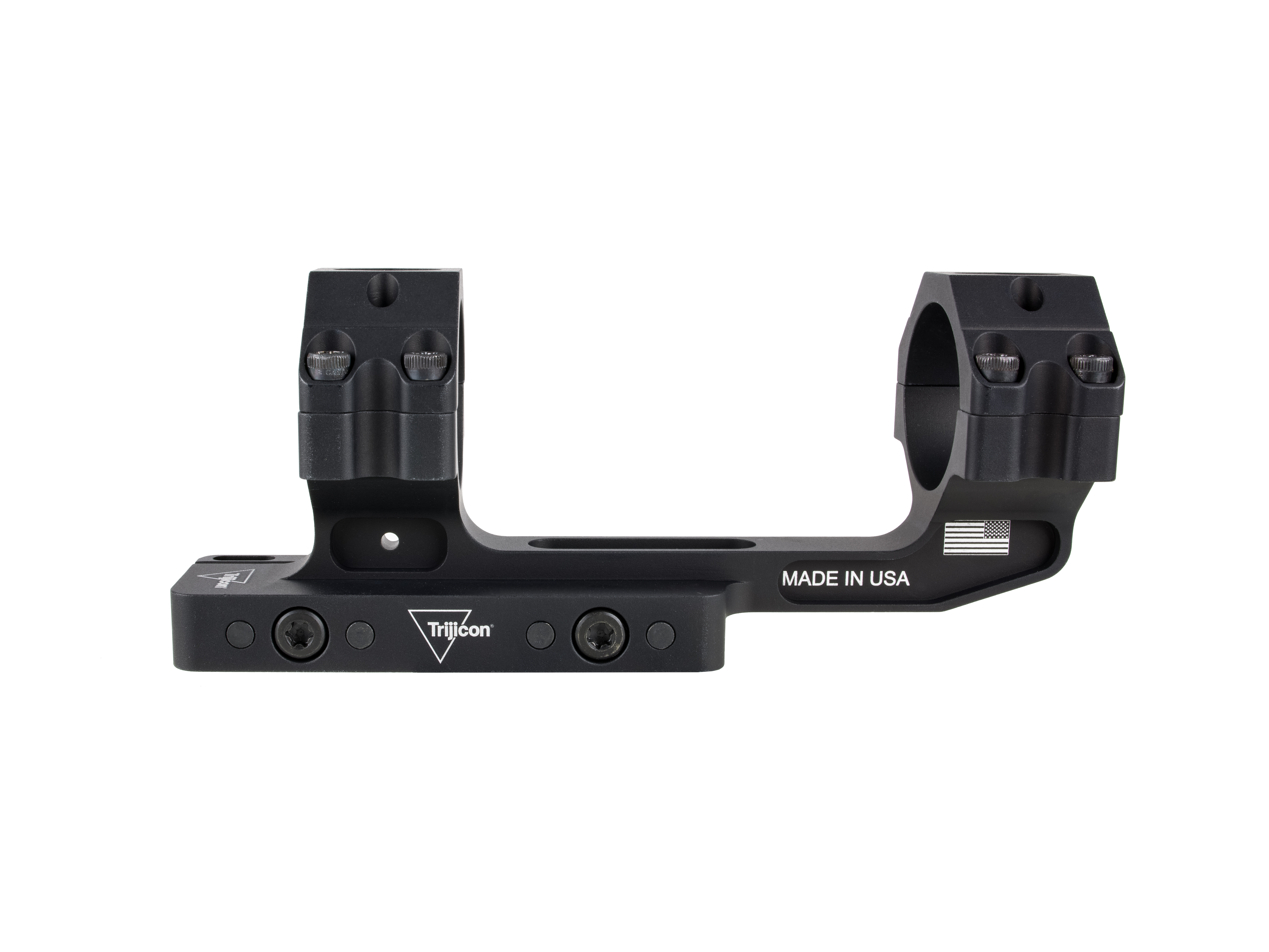

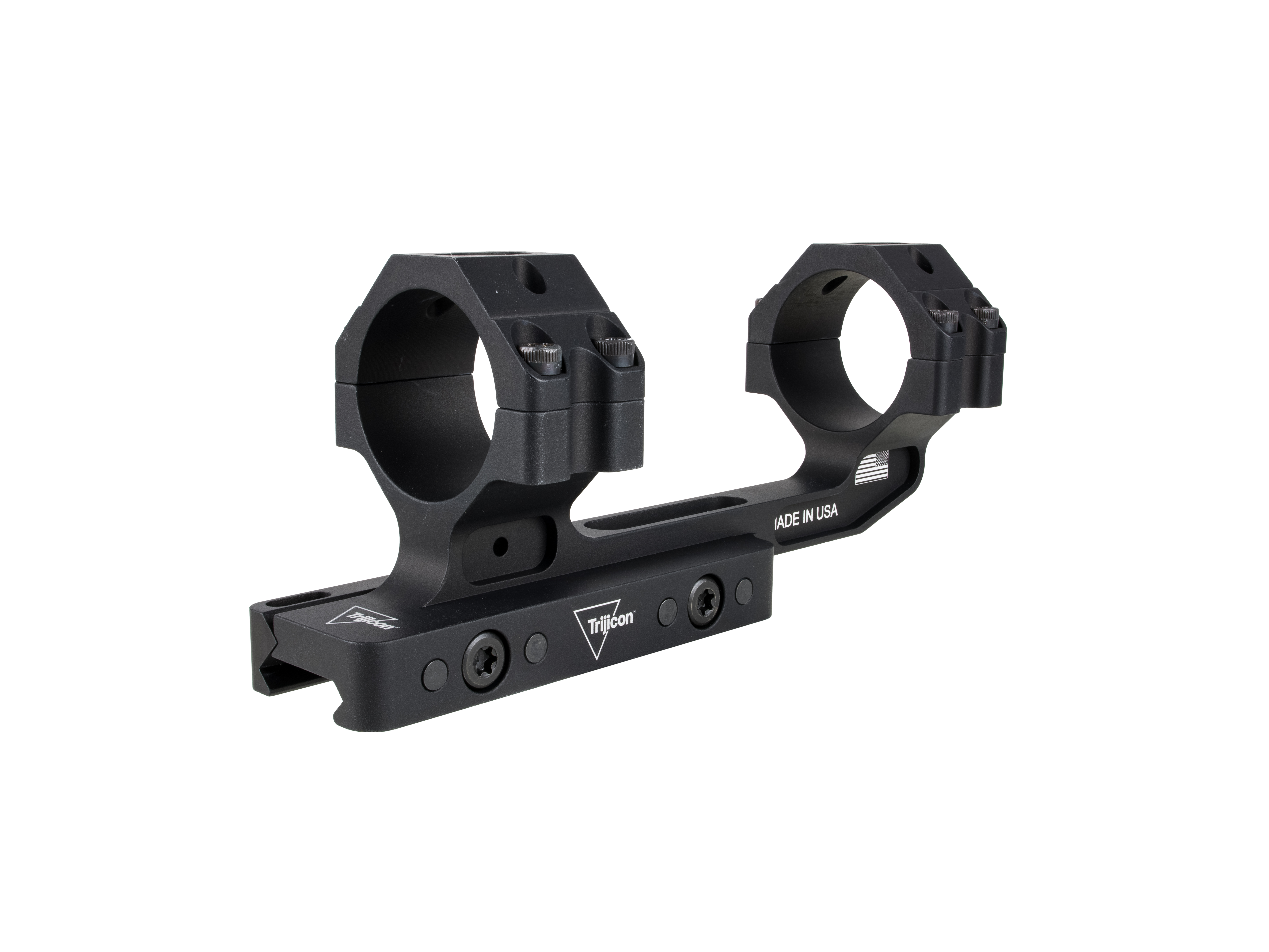

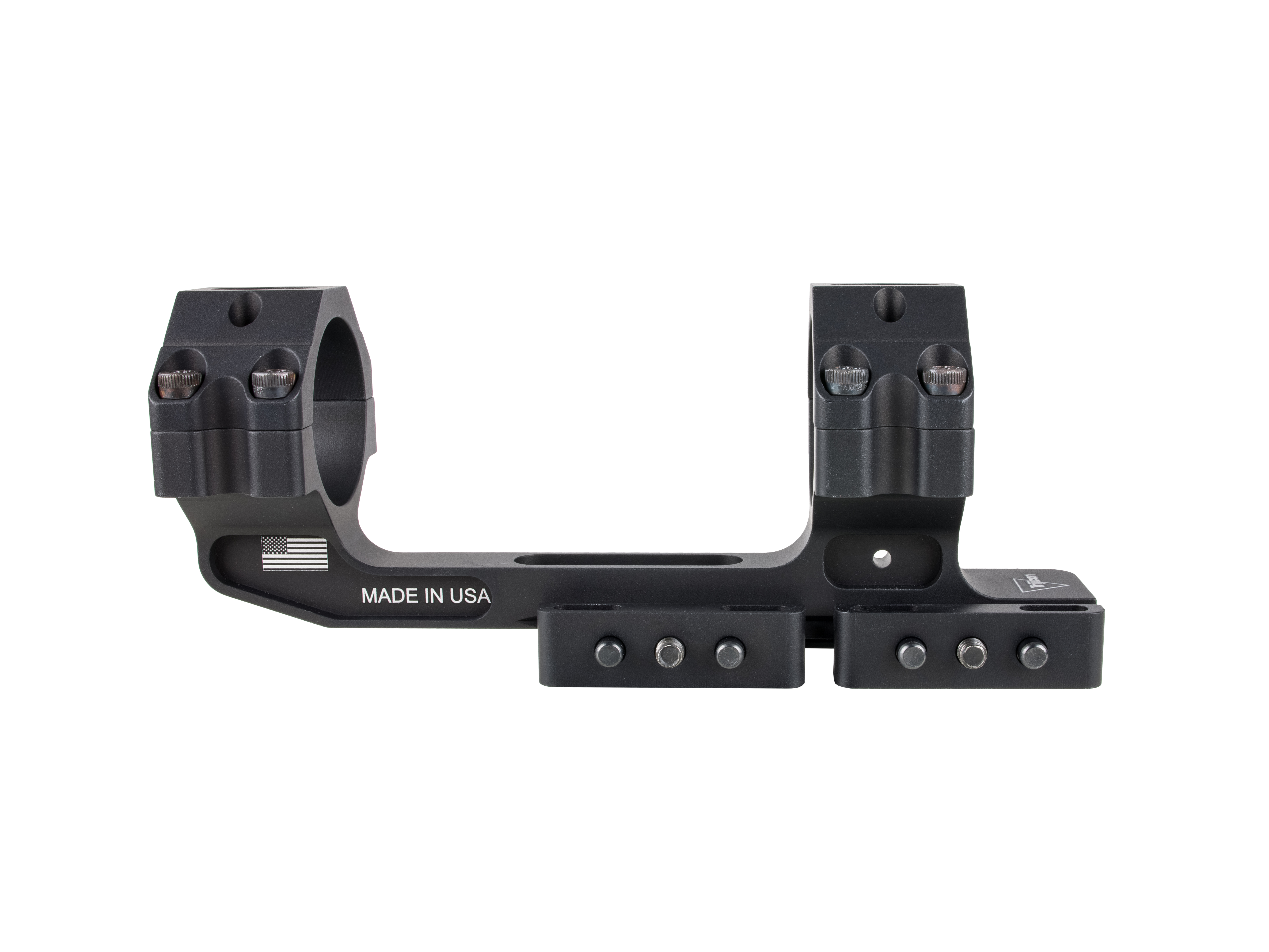

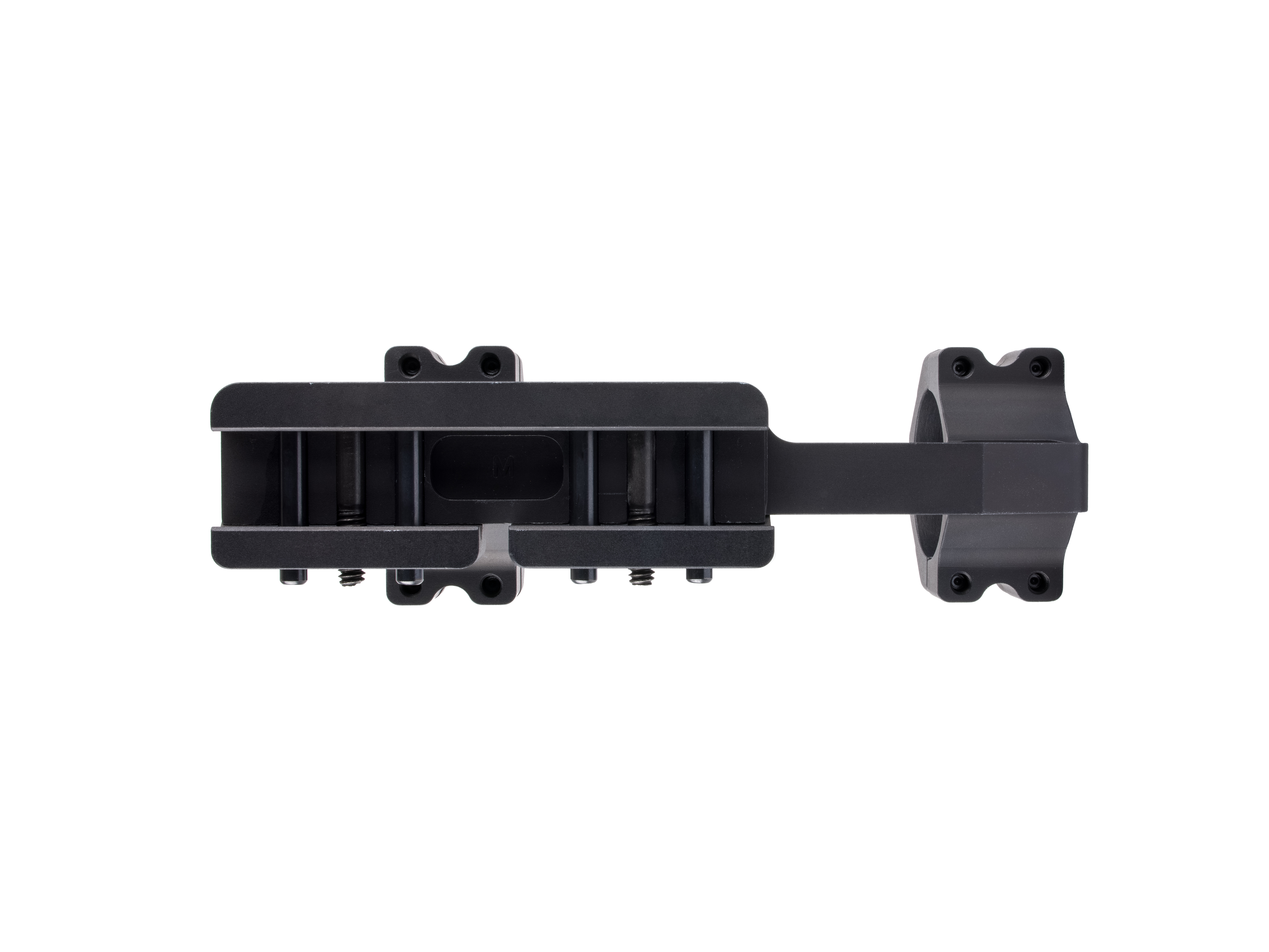

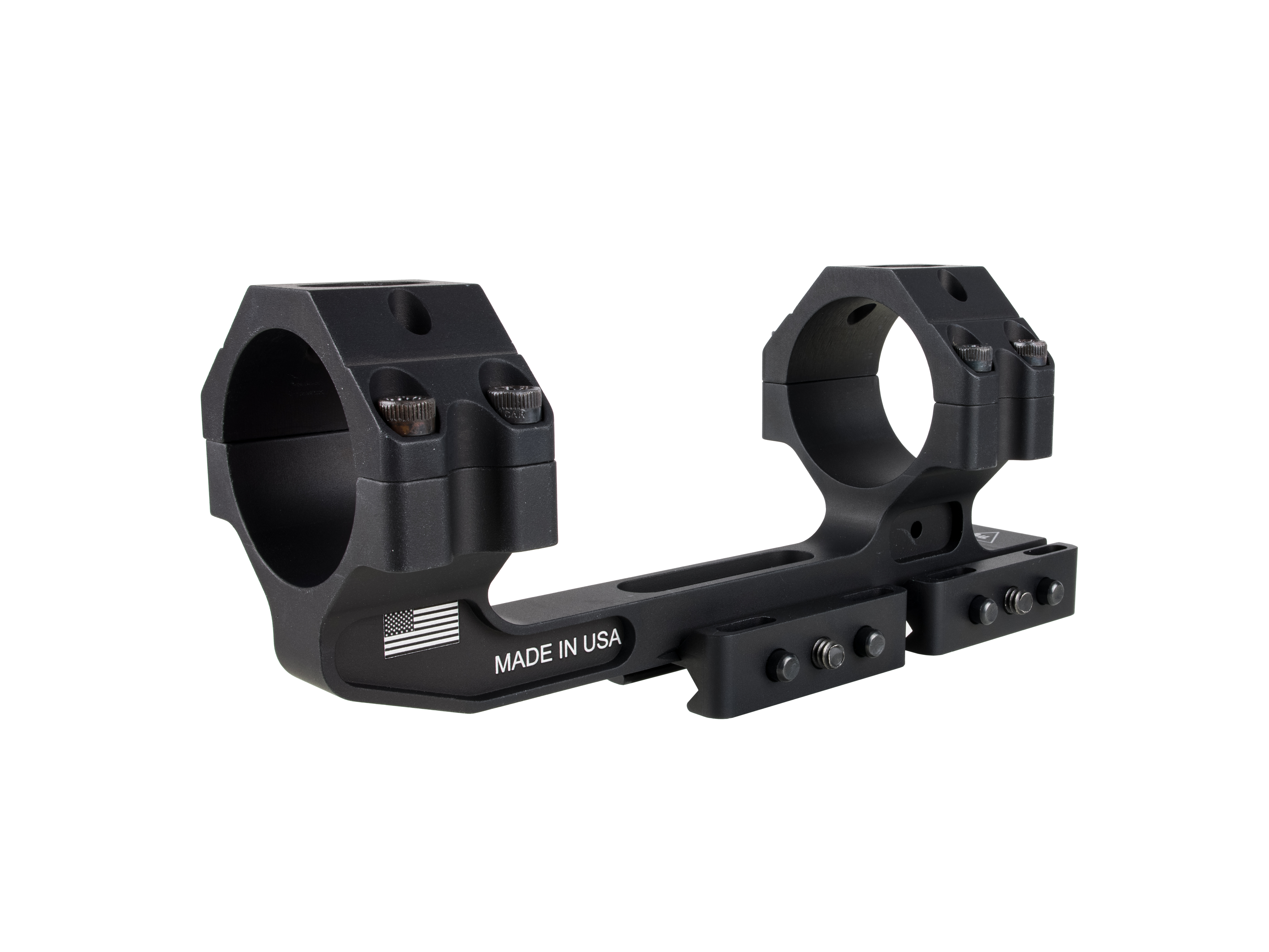

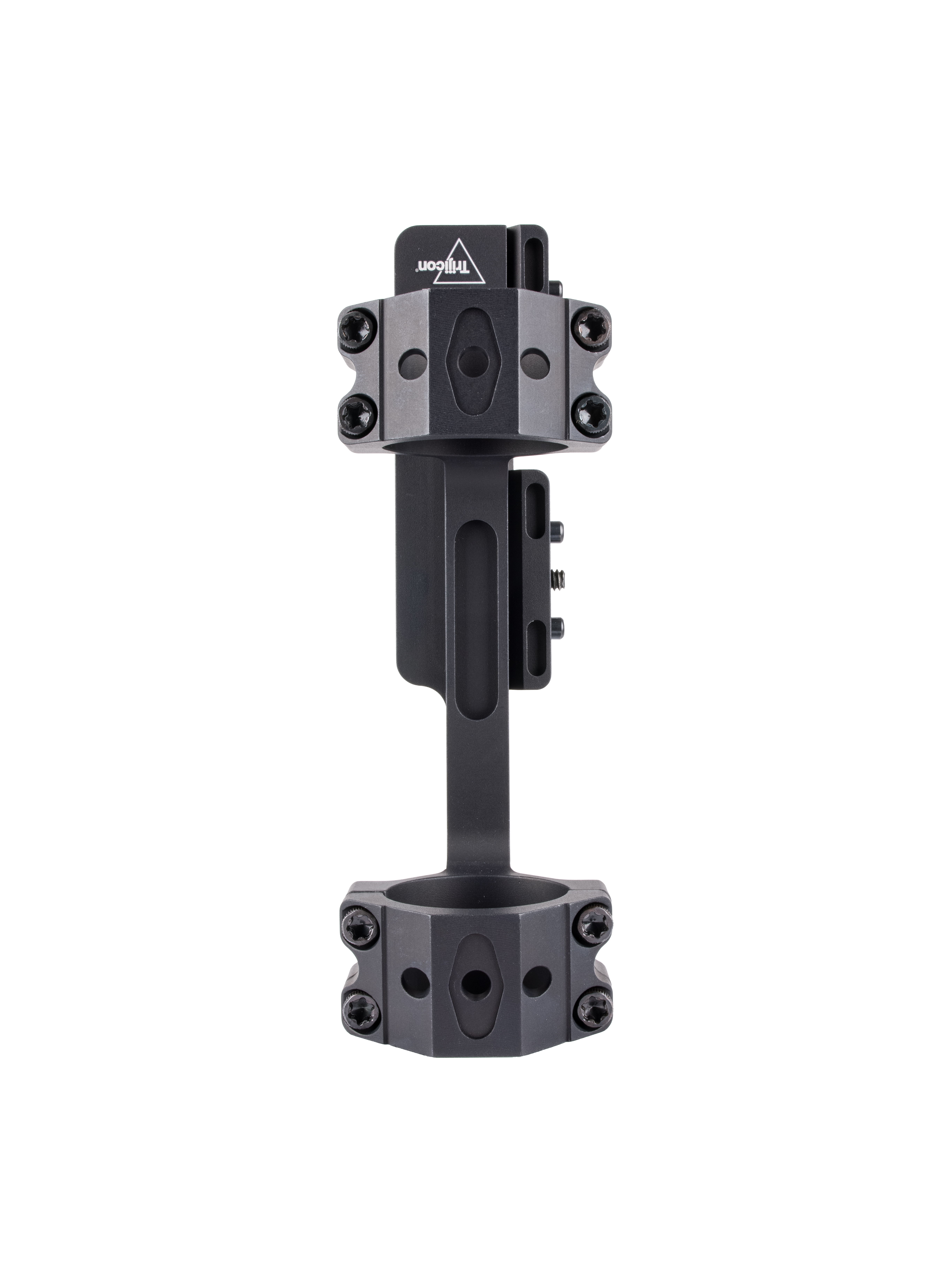

Trijicon Cantilever Mount

Fits 30mm Tubes, Height Above Rail: 1.59"

OVERVIEW

The Trijicon Cantilever Mount features a 30mm tube, and is designed to keep the optic as low as possible for hunting and long range precision rifle applications. Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and a flush mounting bolt configuration for a sleek side profile.

The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.

Designed specifically for variable power optics, this lightweight mount is perfect for mounting Trijicon Variable power optics with an objective lens up to 56mm on any weapon platform with a full Picatinny rail.

- Matte black anodized finish
- Made in the USA

Distance From Top of Mounting Rail to Optical Axis:
1.59"

Fits Objective lens up to 56mm

Torque Spec (Rail):
Can be Tightened To: 30-38 in. / lbs.

Torque Spec (Ring Caps): 14-16 in. / lbs.

NOTE: Fits Objective lens up to 56mm

AC22055 reticle image

INCLUDES

    1 - Mount
    2- Ring Caps
    8 - Screws
    1 - Hex Key

SKU: AC22055

RETAIL: $305.00

FIND A DEALER

The Trijicon Cantilever Mount features a 30mm tube, and is designed to keep the optic as low as possible for hunting and long range precision rifle applications. Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and a flush mounting bolt configuration for a sleek side profile.

The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.

Designed specifically for variable power optics, this lightweight mount is perfect for mounting Trijicon Variable power optics with an objective lens up to 56mm on any weapon platform with a full Picatinny rail.

- Matte black anodized finish
- Made in the USA

Distance From Top of Mounting Rail to Optical Axis:
1.59"

Fits Objective lens up to 56mm

Torque Spec (Rail):
Can be Tightened To: 30-38 in. / lbs.

Torque Spec (Ring Caps): 14-16 in. / lbs.

NOTE: Fits Objective lens up to 56mm

INDUSTRY-LEADING RESEARCH, DESIGN & TESTING

We are engineers at heart, like our founder, Glyn Bindon. Therefore, we are bound by a commitment to seek innovative aiming solutions that constantly redefine “brilliant.” This legacy of innovation is fed by what we call The Science of Brilliant®.

LEARN MORE ABOUT THE SCIENCE OF BRILLIANT®

TESTING PROCEDURES INCLUDE:

Solid Zero Tested Vibration Tested Drop Tested
Tube Size
30mm
Housing Material
6061-T6 Aluminum
Finish
Matte Black
Length
6.1 in (154.94mm)
Width
1.95 in (49.53mm)
Height Above Rail (in/mm)
1.59" in. (40.39mm)

Q-LOC™ Technology Mounting Instructions

Download Q-LOC™ Technology Mounting Instructions DOWNLOAD
