NEW FOR 2024

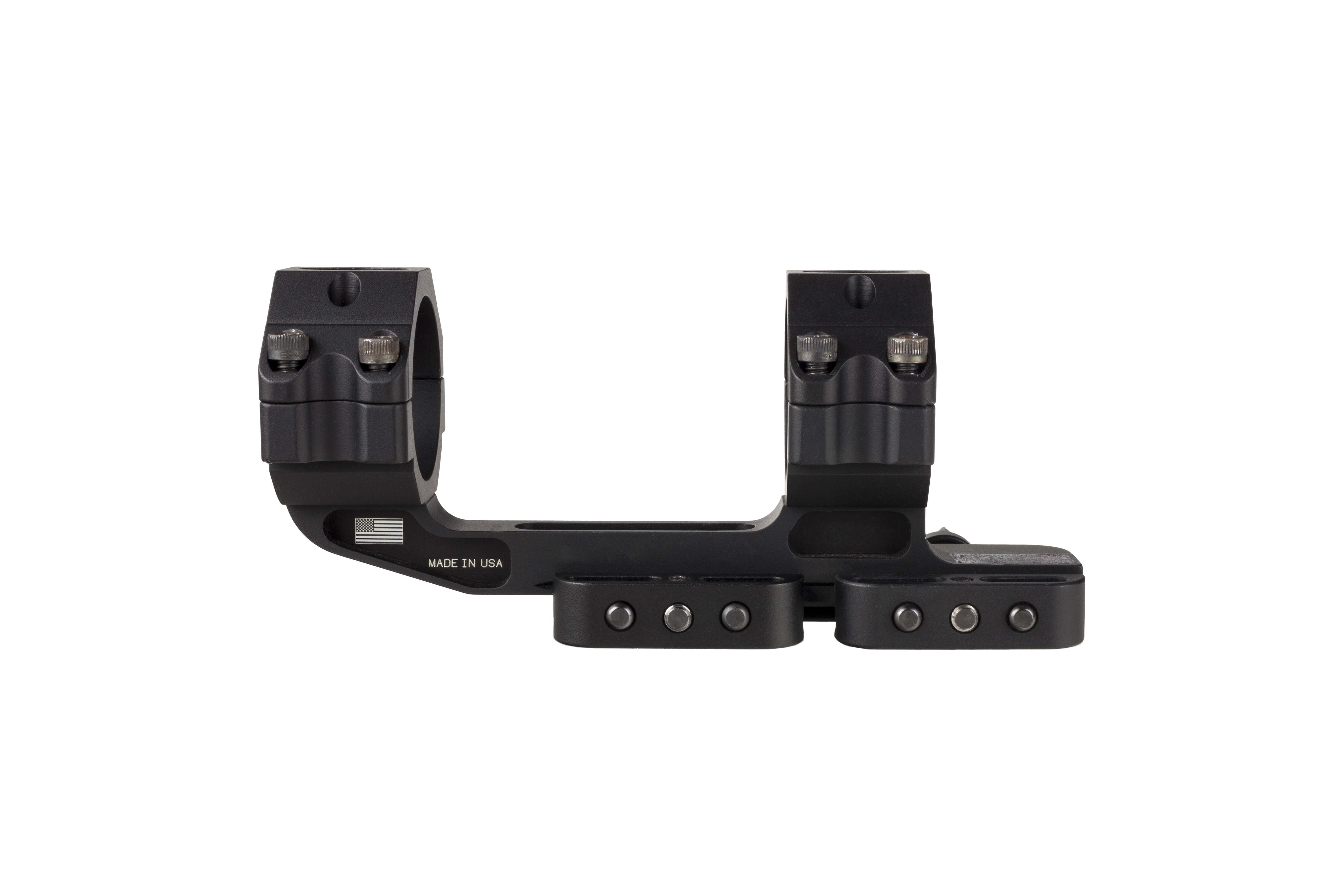

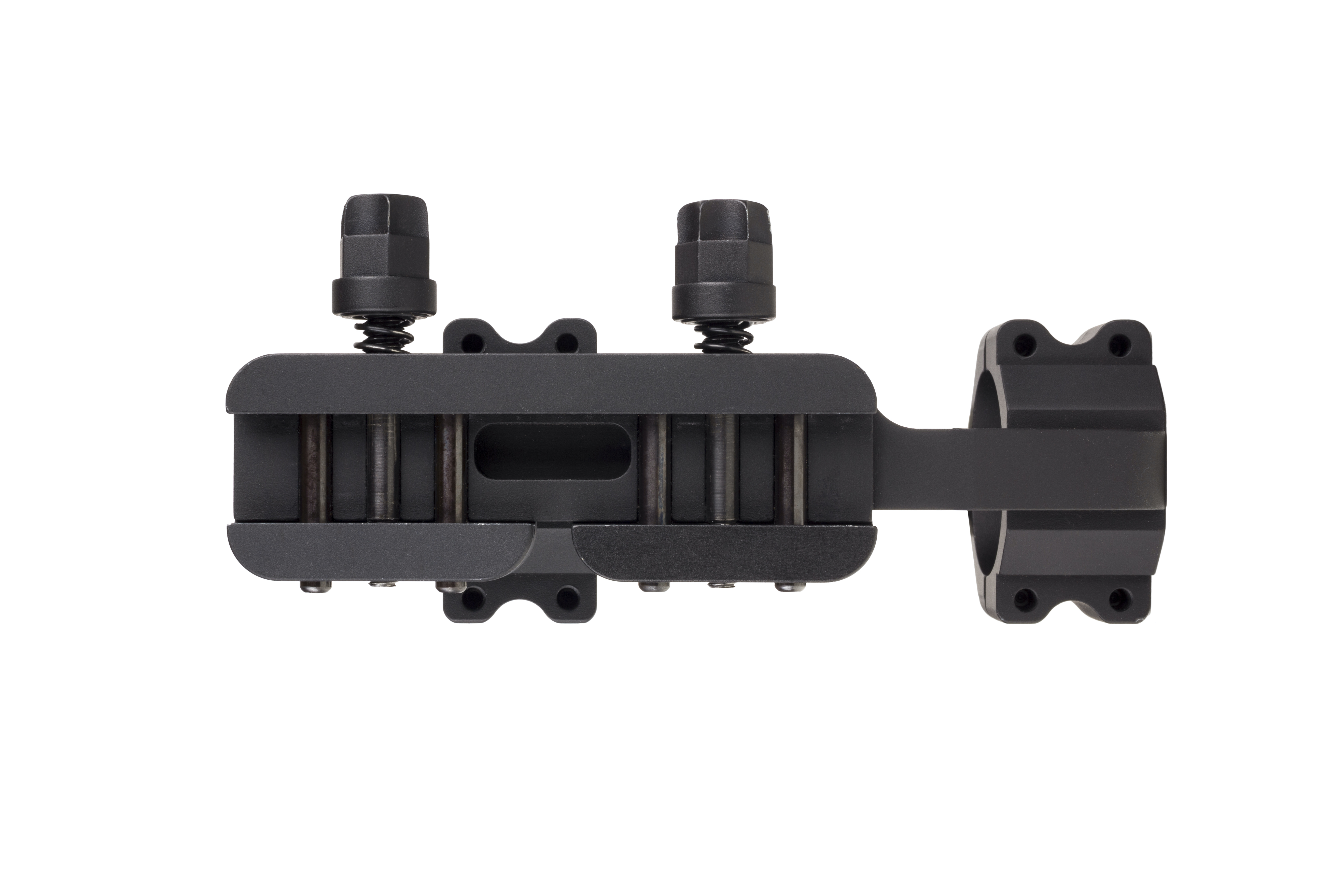

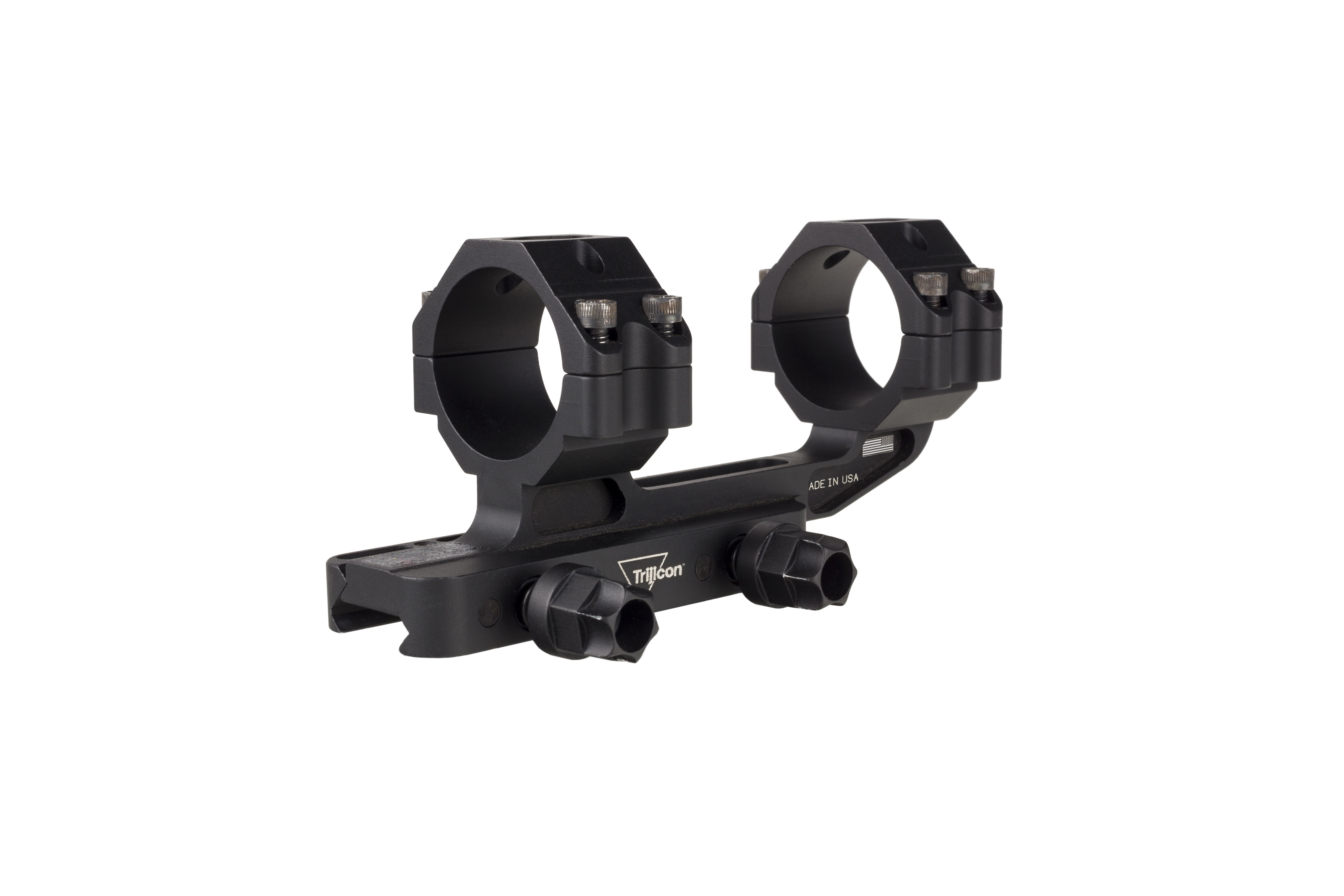

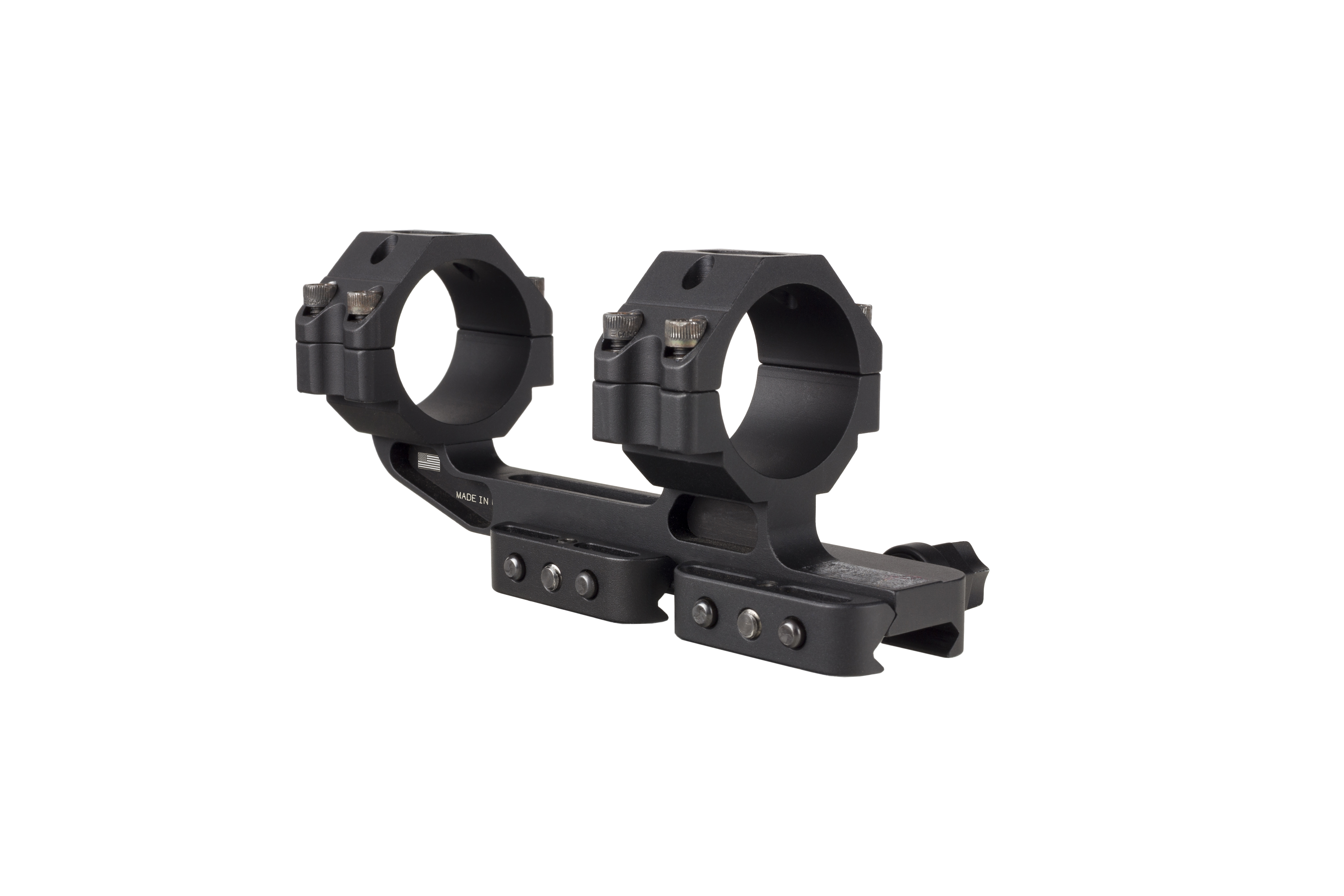

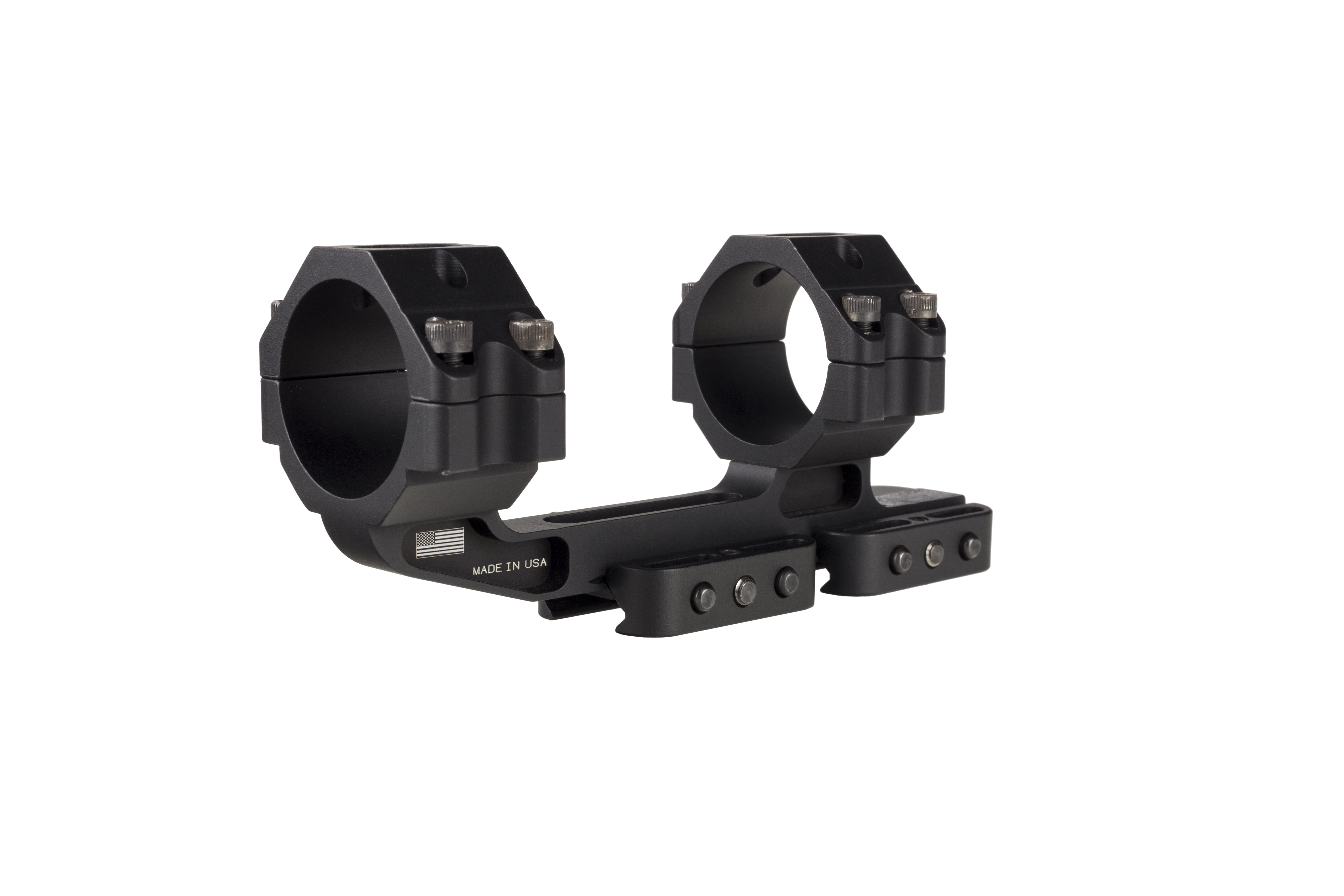

Trijicon Cantilever Mount with Trijicon Q-LOC™ Technology

Fits 34mm Tubes, Height Above Rail: 1.535", Cant: 20 MOA

OVERVIEW

The Trijicon Cantilever Mount w/ Q-LOC™ Technology features a 34mm tube, and is designed to keep the optic as low as possible for hunting and long range precision rifle applications.  Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and an easy to use one handed tool less mounting system.  The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.

Designed specifically for variable power optics, this lightweight mount is perfect for mounting Trijicon Variable power optics with an objective lens up to 56mm on any weapon platform with a full Picatinny rail. Trijicon Cantilever Mounts w/ Q-LOC Technology at a height of 1.535" will also match the standard height above rail for all clip-on devices.

- Matte black anodized finish
- Made in the USA

Distance From Top of Mounting Rail to Optical Axis:
1.535"

Cant: 20MOA

Torque Spec (Rail):
Spring Tension Only: 12-16 in. / lbs.
Can be Tightened To: 30-38 in. / lbs.

Torque Spec (Ring Caps): 14-16 in. / lbs.

NOTE: Fits Objective lens up to 56mm. Matches height above rail for all potential clip-on devices

AC22046 reticle image

INCLUDES

    1 - Mount
    2- Ring Caps
    8 - Screws
    1 - Hex Key

SKU: AC22046

RETAIL: $356.00

FIND A DEALER

The Trijicon Cantilever Mount w/ Q-LOC™ Technology features a 34mm tube, and is designed to keep the optic as low as possible for hunting and long range precision rifle applications.  Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and an easy to use one handed tool less mounting system.  The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.

Designed specifically for variable power optics, this lightweight mount is perfect for mounting Trijicon Variable power optics with an objective lens up to 56mm on any weapon platform with a full Picatinny rail. Trijicon Cantilever Mounts w/ Q-LOC Technology at a height of 1.535" will also match the standard height above rail for all clip-on devices.

- Matte black anodized finish
- Made in the USA

Distance From Top of Mounting Rail to Optical Axis:
1.535"

Cant: 20MOA

Torque Spec (Rail):
Spring Tension Only: 12-16 in. / lbs.
Can be Tightened To: 30-38 in. / lbs.

Torque Spec (Ring Caps): 14-16 in. / lbs.

NOTE: Fits Objective lens up to 56mm. Matches height above rail for all potential clip-on devices

QUICK-RELEASE, RETURN-TO-ZERO

QUICK-RELEASE, RETURN-TO-ZERO

Multiple proprietary recoil lugs ensure total rail engagement. Easily remove and re-attach without needing to confirm zero.

AUTOMATIC RETENTION KEEPS OPTIC SECURE

AUTOMATIC RETENTION KEEPS OPTIC SECURE

Heavy-duty springs ensure secure retention under heavy, repeated recoil. Facilitates one-handed mounting.

SNAG-RESISTANT KNOB DESIGN

SNAG-RESISTANT KNOB DESIGN

Compact, circular design minimizes hazards of gear snags.

PRECISION-CUT DIMENSIONS

PRECISION-CUT DIMENSIONS

Ensures optimal placement on MIL-STD 1913, NATO, non-mil spec, and even damaged rails.

PROVEN DURABILITY

PROVEN DURABILITY

Machined from 6061 aluminum for outstanding, repeatable performance.

INDUSTRY-LEADING RESEARCH, DESIGN & TESTING

We are engineers at heart, like our founder, Glyn Bindon. Therefore, we are bound by a commitment to seek innovative aiming solutions that constantly redefine “brilliant.” This legacy of innovation is fed by what we call The Science of Brilliant®.

LEARN MORE ABOUT THE SCIENCE OF BRILLIANT®

TESTING PROCEDURES INCLUDE:

Solid Zero Tested Vibration Tested Drop Tested
Tube Size
34mm
Housing Material
6061-T6 Aluminum
Finish
Matte Black
Length
6.1 in (154.94mm)
Width
2.8 in (71.12mm)
Height Above Rail (in/mm)
1.535" in. (38.99mm)
Feature
Trijicon Q-LOC™ Technology

Trijicon Q-LOC™ Technology Mounting Instructions

Download Trijicon Q-LOC™ Technology Mounting Instructions DOWNLOAD
