Trijicon MGRS® Mk19 Adjustable Long Range Mount — 2000m

AC32123 image angle 1 AC32123 image angle 2 AC32123 image angle 3 AC32123 image angle 4 AC32123 image angle 5 AC32123 image angle 6

OVERVIEW

The Trijicon MGRS® MK19 Mounts are designed to provide a rapid optical mounting solution for the MK19 40mm Grenade Launcher. These mounts provide a stable platform for the Trijicon MGRS during observation and firing. Based on range from external devices or user estimation, the MK19 mount can be quickly adjusted to match the corresponding ballistics and correct for spin drift.

  • Designed for the Trijicon MGRS with optional 3x Magnifier.
  • Maintains target FOV while barrel is super-elevated out to 2,000m
  • Holds zero and offers return-to-zero after removal and remounting.
  • Does not interfere with the MK19 operations or maintenance, including charging handle, feed tray cover, and grips. The feed tray remains accessible while the MGRS is mounted.
  • Allows mounting of other day/night optics that can be attached to 1913 Picatinny rails.
  • Designed according to MIL-STD-810 G, STANAG 2895, A1-A3, B1-B2, C0-C2
  • Ballistic Compensation: Designed for M430A1
  • Spin Drift Compensation: 2 Degrees linear over the full elevation range
  • Height Above Reciever: 10.3 in.



Please contact us for pricing and availability.

AC32123 reticle image

INCLUDES

    Trijicon MGRS® Mk19 Adjustable Long Range Mount

SKU: AC32123

RETAIL: $4,148.00

FIND A DEALER

The Trijicon MGRS® MK19 Mounts are designed to provide a rapid optical mounting solution for the MK19 40mm Grenade Launcher. These mounts provide a stable platform for the Trijicon MGRS during observation and firing. Based on range from external devices or user estimation, the MK19 mount can be quickly adjusted to match the corresponding ballistics and correct for spin drift.

  • Designed for the Trijicon MGRS with optional 3x Magnifier.
  • Maintains target FOV while barrel is super-elevated out to 2,000m
  • Holds zero and offers return-to-zero after removal and remounting.
  • Does not interfere with the MK19 operations or maintenance, including charging handle, feed tray cover, and grips. The feed tray remains accessible while the MGRS is mounted.
  • Allows mounting of other day/night optics that can be attached to 1913 Picatinny rails.
  • Designed according to MIL-STD-810 G, STANAG 2895, A1-A3, B1-B2, C0-C2
  • Ballistic Compensation: Designed for M430A1
  • Spin Drift Compensation: 2 Degrees linear over the full elevation range
  • Height Above Reciever: 10.3 in.



Please contact us for pricing and availability.

Length x Width x Height
6.1 in x 10.8 in x 10.2 in
(154.94mm x 274.32mm x 259.08mm)
Weight
56.8 oz. (1,610.25g)
Housing Material
Anodized Aluminum, Black Oxide Stainless Steel, POM (MIL Spec)
Length
6.1 in (154.94mm)
Width
10.8 in (274.32mm)
Height
10.2 in (274.32mm)
Height Above Rail (in/mm)
10.3 in. (261.62mm)
Feature
Fits Picatinny Rail

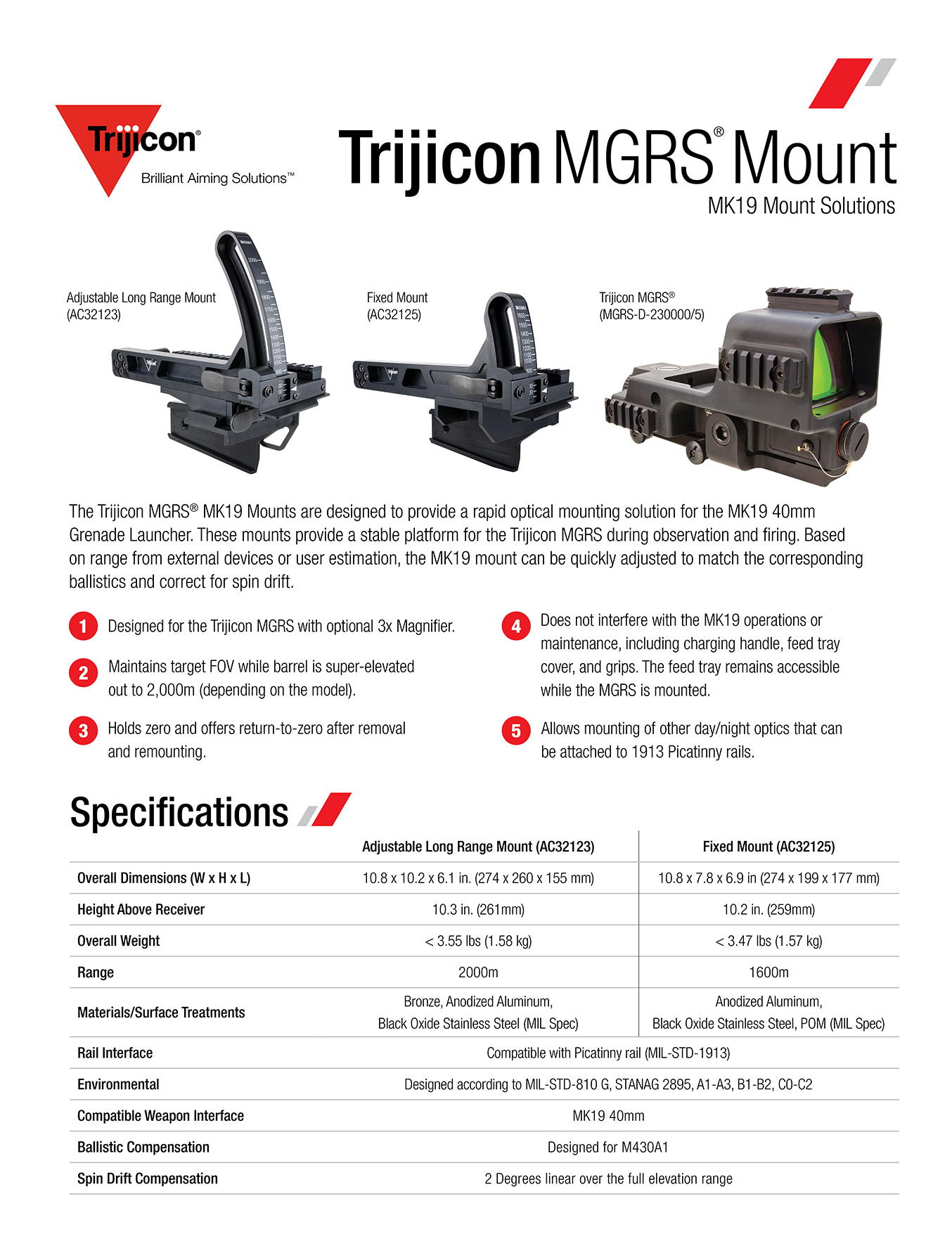

MGRS Mk19 Mount Spec Sheet

Download MGRS Mk19 Mount Spec Sheet DOWNLOAD
