OVERVIEW

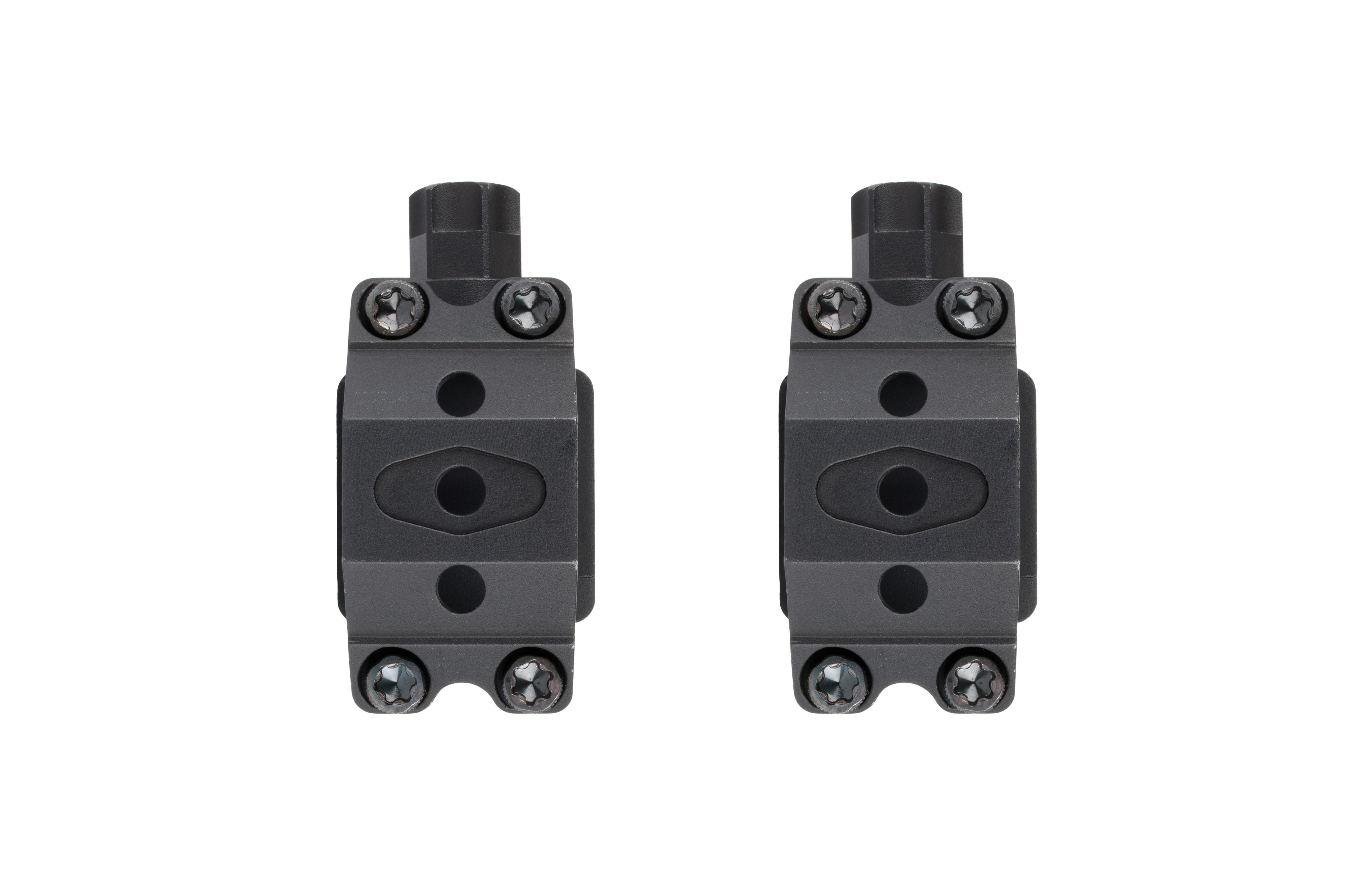

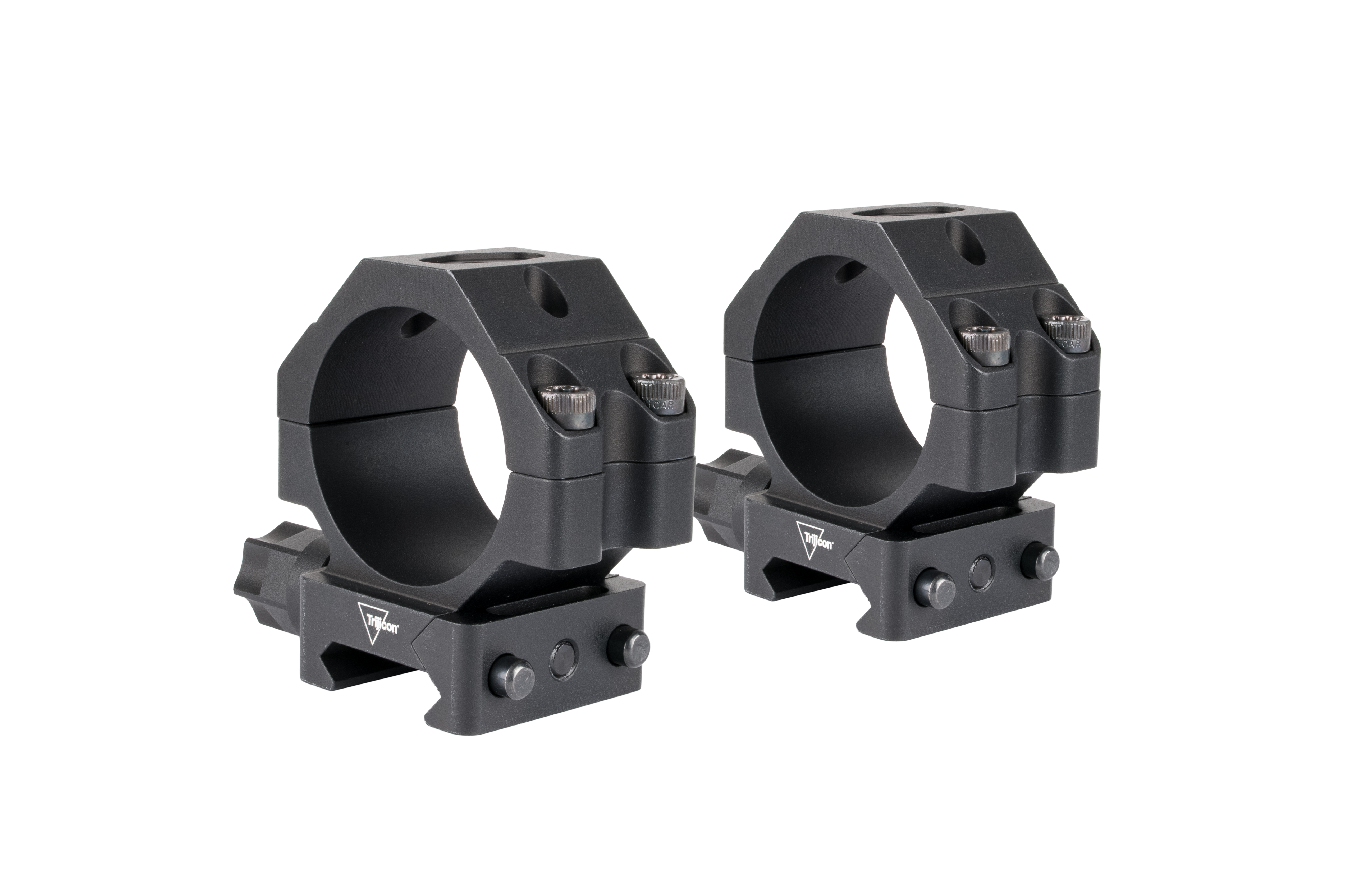

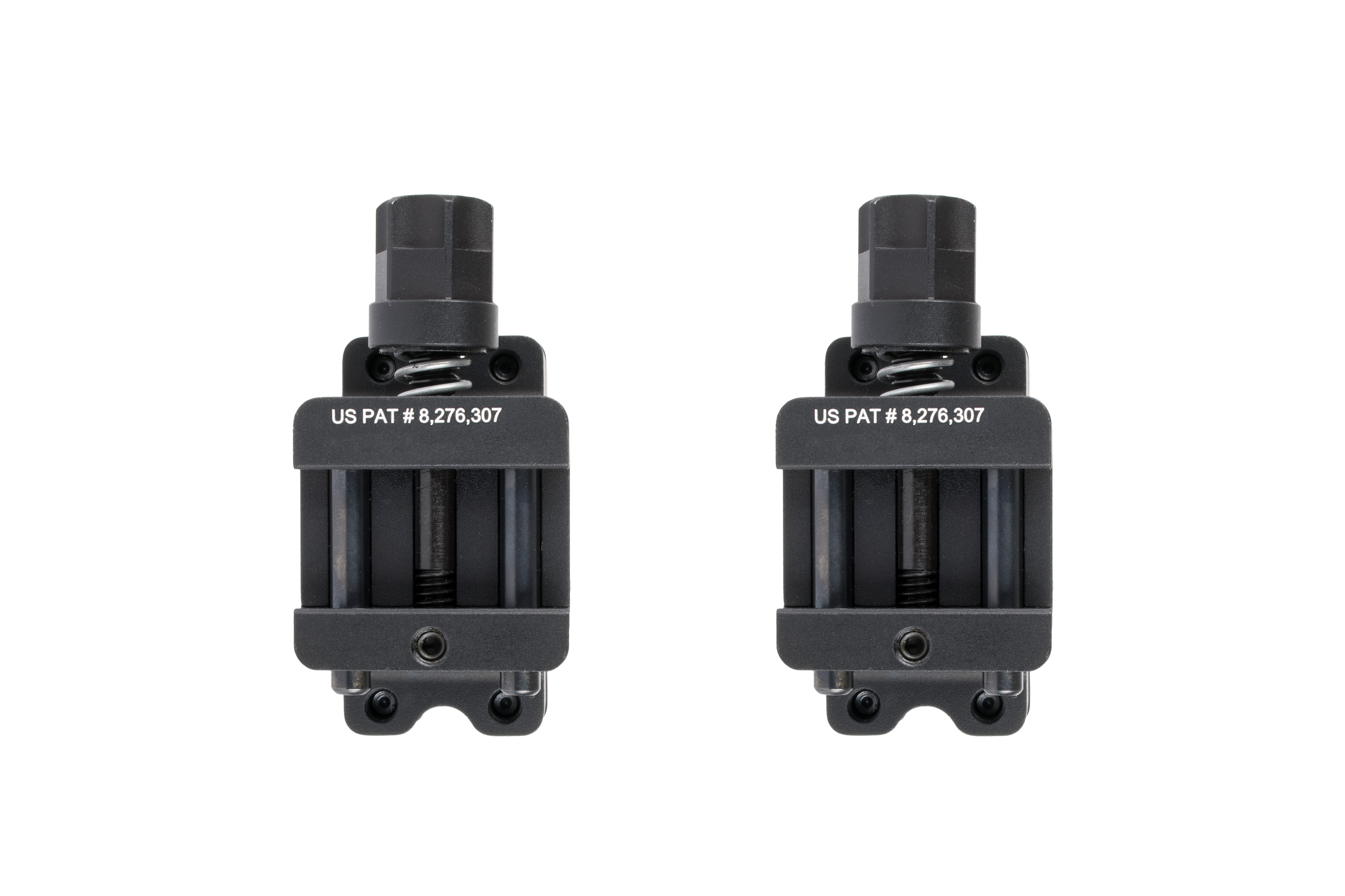

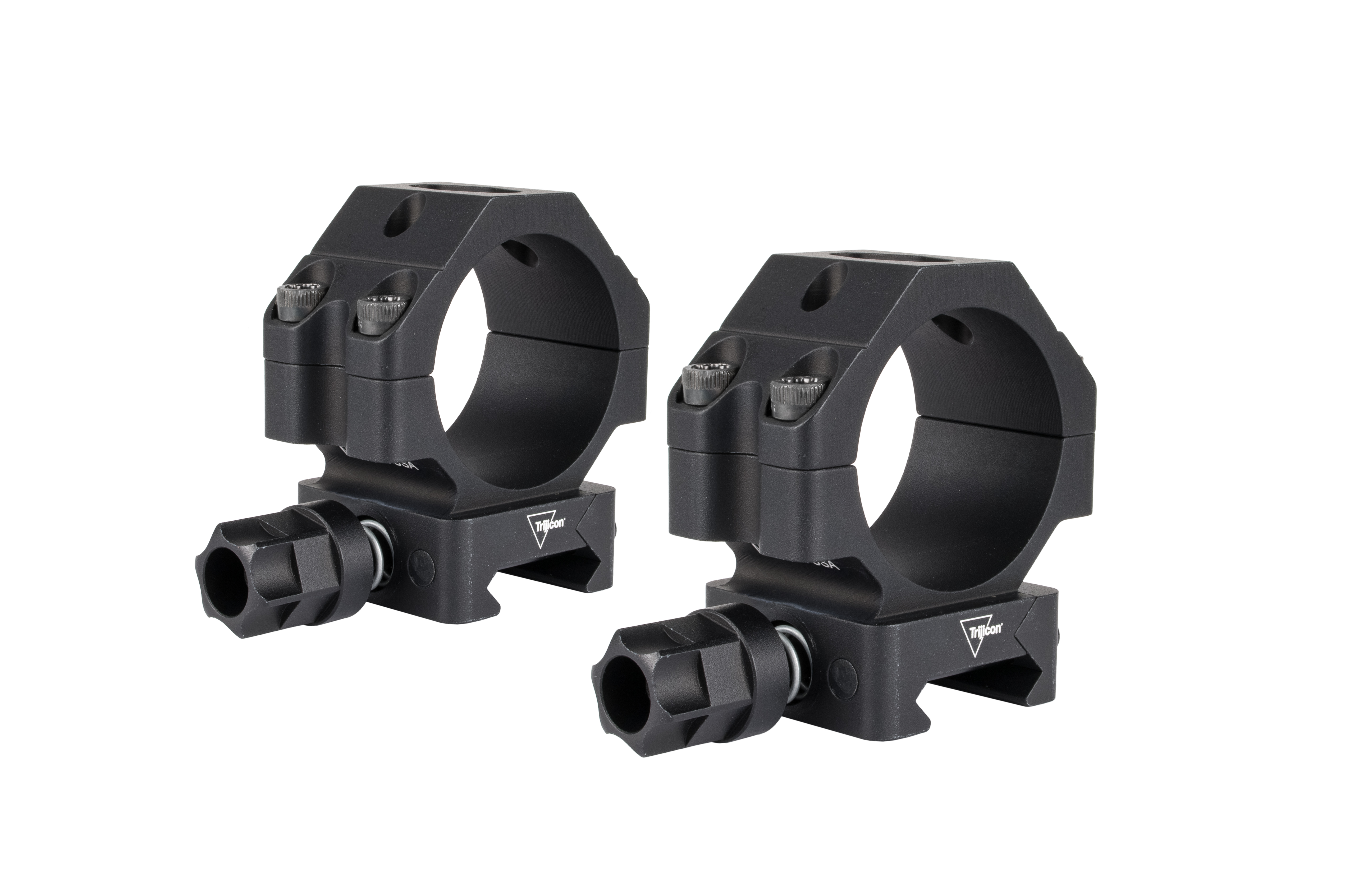

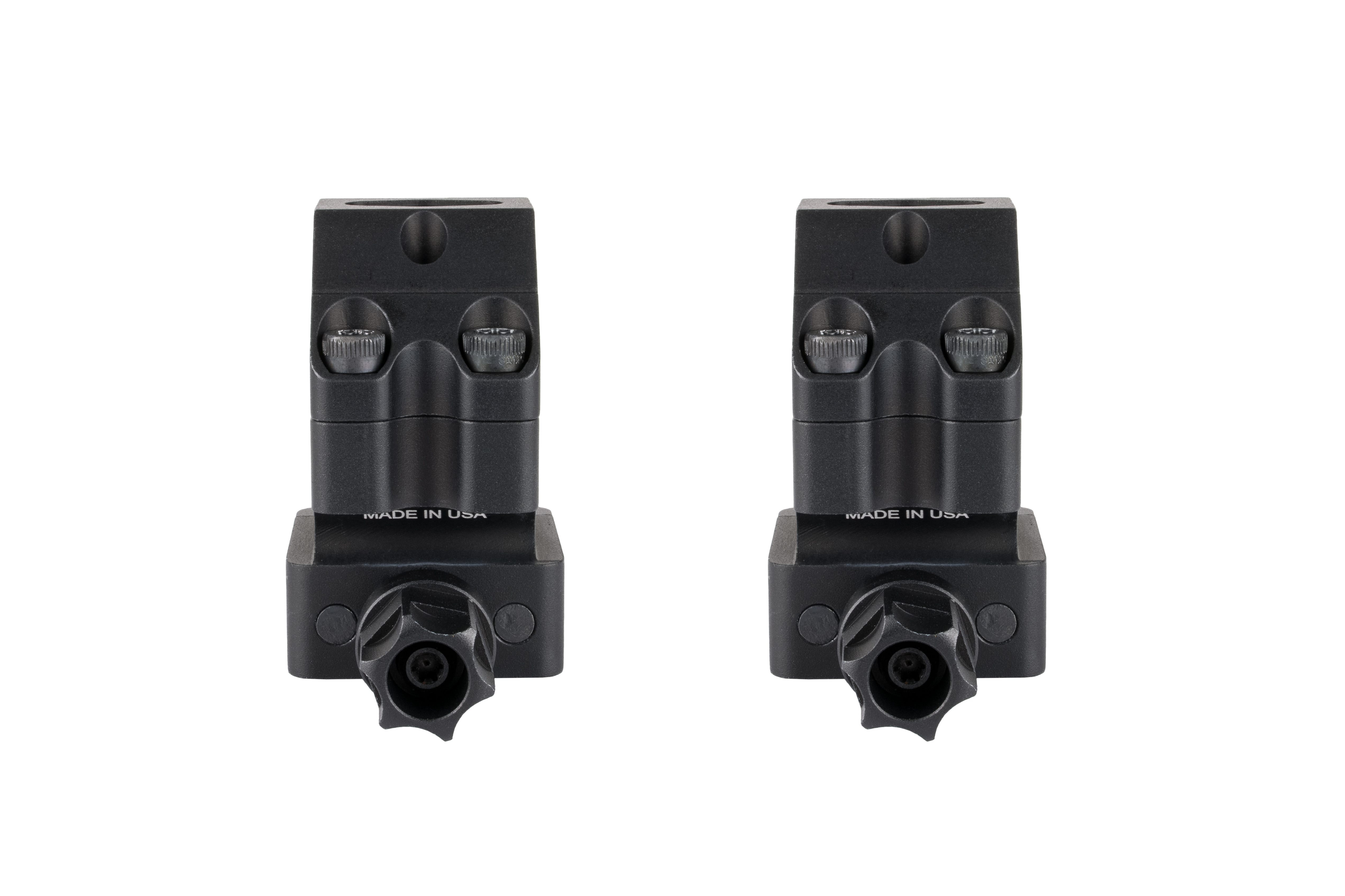

Trijicon Ring Mounts w/ Q-LOC™ Technology feature a 30mm tube, and are designed to keep the optic as low as possible for hunting and long range precision rifle applications. Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
The Ring mounts boast a low profile design with superior return to zero performance and are compatible with any Mil-Spec or NATO Picatinny rail.
Designed specifically for variable power optics, these rings are perfect for mounting Trijicon variable power optics with an objective lens up to 40mm on any weapon platform with a full Picatinny rail.
- Matte black anodized finish
- Made in the USA
Distance From Top of Mounting Rail to Optical Axis:
1.0"
Fits Objective lens up to 40mm
Torque Spec (Rail):
Spring Tension Only: 12-16 in. / lbs.
Can be Tightened To: 30-38 in. / lbs.
Torque Spec (Ring Caps): 14-16 in. / lbs.
NOTE: Fits Objective lens up to 40mm
Trijicon Ring Mounts w/ Q-LOC™ Technology feature a 30mm tube, and are designed to keep the optic as low as possible for hunting and long range precision rifle applications. Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
The Ring mounts boast a low profile design with superior return to zero performance and are compatible with any Mil-Spec or NATO Picatinny rail.
Designed specifically for variable power optics, these rings are perfect for mounting Trijicon variable power optics with an objective lens up to 40mm on any weapon platform with a full Picatinny rail.
- Matte black anodized finish
- Made in the USA
Distance From Top of Mounting Rail to Optical Axis:
1.0"
Fits Objective lens up to 40mm
Torque Spec (Rail):
Spring Tension Only: 12-16 in. / lbs.
Can be Tightened To: 30-38 in. / lbs.
Torque Spec (Ring Caps): 14-16 in. / lbs.
NOTE: Fits Objective lens up to 40mm
QUICK-RELEASE, RETURN-TO-ZERO
Multiple proprietary recoil lugs ensure total rail engagement. Easily remove and re-attach without needing to confirm zero.
AUTOMATIC RETENTION KEEPS OPTIC SECURE
Heavy-duty springs ensure secure retention under heavy, repeated recoil. Facilitates one-handed mounting.
SNAG-RESISTANT KNOB DESIGN
Compact, circular design minimizes hazards of gear snags.
PRECISION-CUT DIMENSIONS
Ensures optimal placement on MIL-STD 1913, NATO, non-mil spec, and even damaged rails.
PROVEN DURABILITY
Machined from 6061 aluminum for outstanding, repeatable performance.
INDUSTRY-LEADING RESEARCH, DESIGN & TESTING
We are engineers at heart, like our founder, Glyn Bindon. Therefore, we are bound by a commitment to seek innovative aiming solutions that constantly redefine “brilliant.” This legacy of innovation is fed by what we call The Science of Brilliant®.
LEARN MORE ABOUT THE SCIENCE OF BRILLIANT®TESTING PROCEDURES INCLUDE:
ADDITIONAL OPTIONS
Trijicon Scope Rings with Q-LOC™ Technology - Tall
AC22066
Fits 30mm Tubes, Height Above Rail: 1.3"
Retail: $280.00
Trijicon Scope Rings with Q-LOC™ Technology - Extra Tall
AC22067
Fits 30mm Tubes, Height Above Rail: 1.4"
Retail: $280.00
Trijicon Scope Rings with Q-LOC™ Technology - Medium
AC22065
Fits 30mm Tubes, Height Above Rail: 1.1"
Retail: $280.00
