NEW FOR 2024

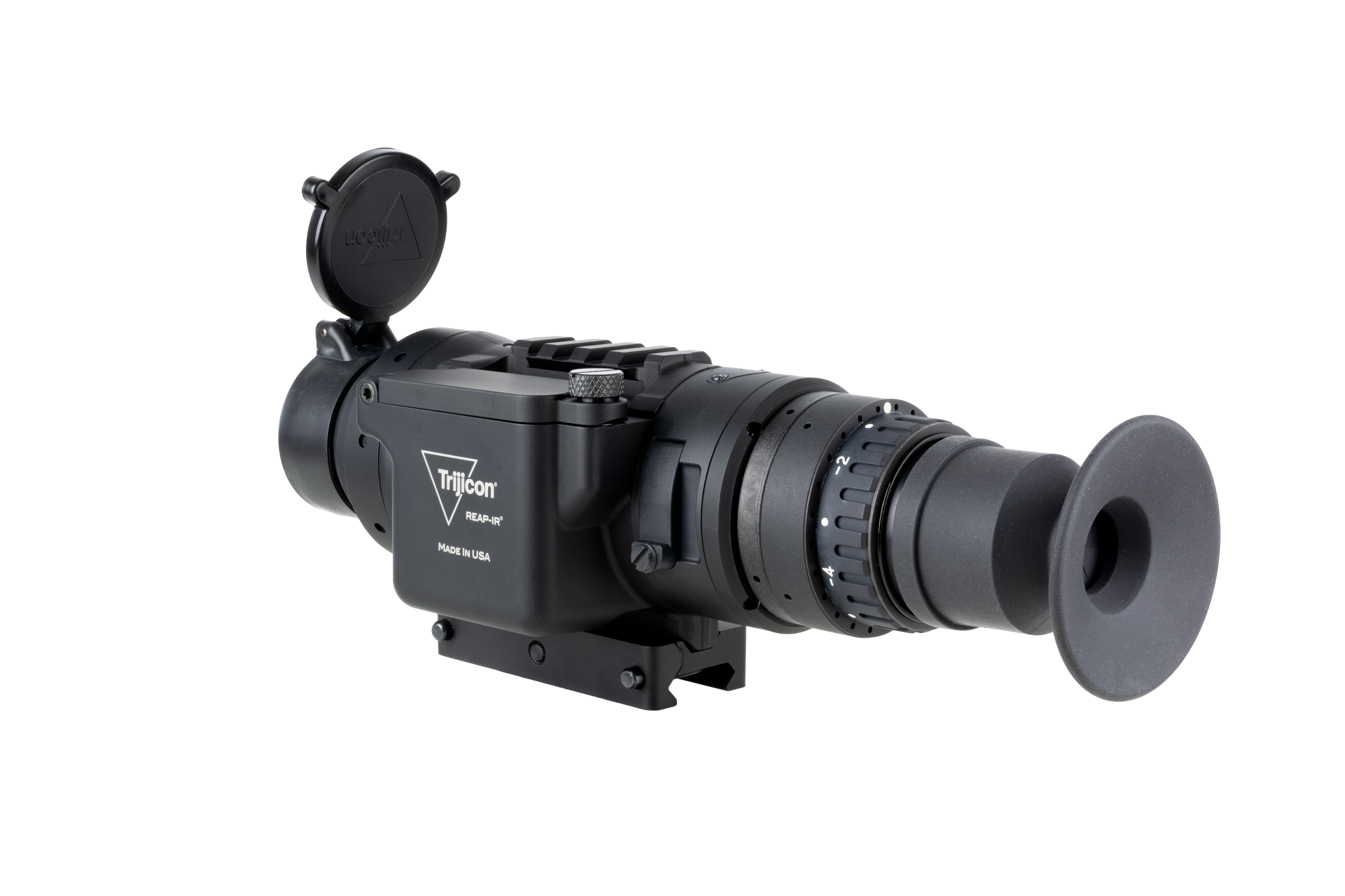

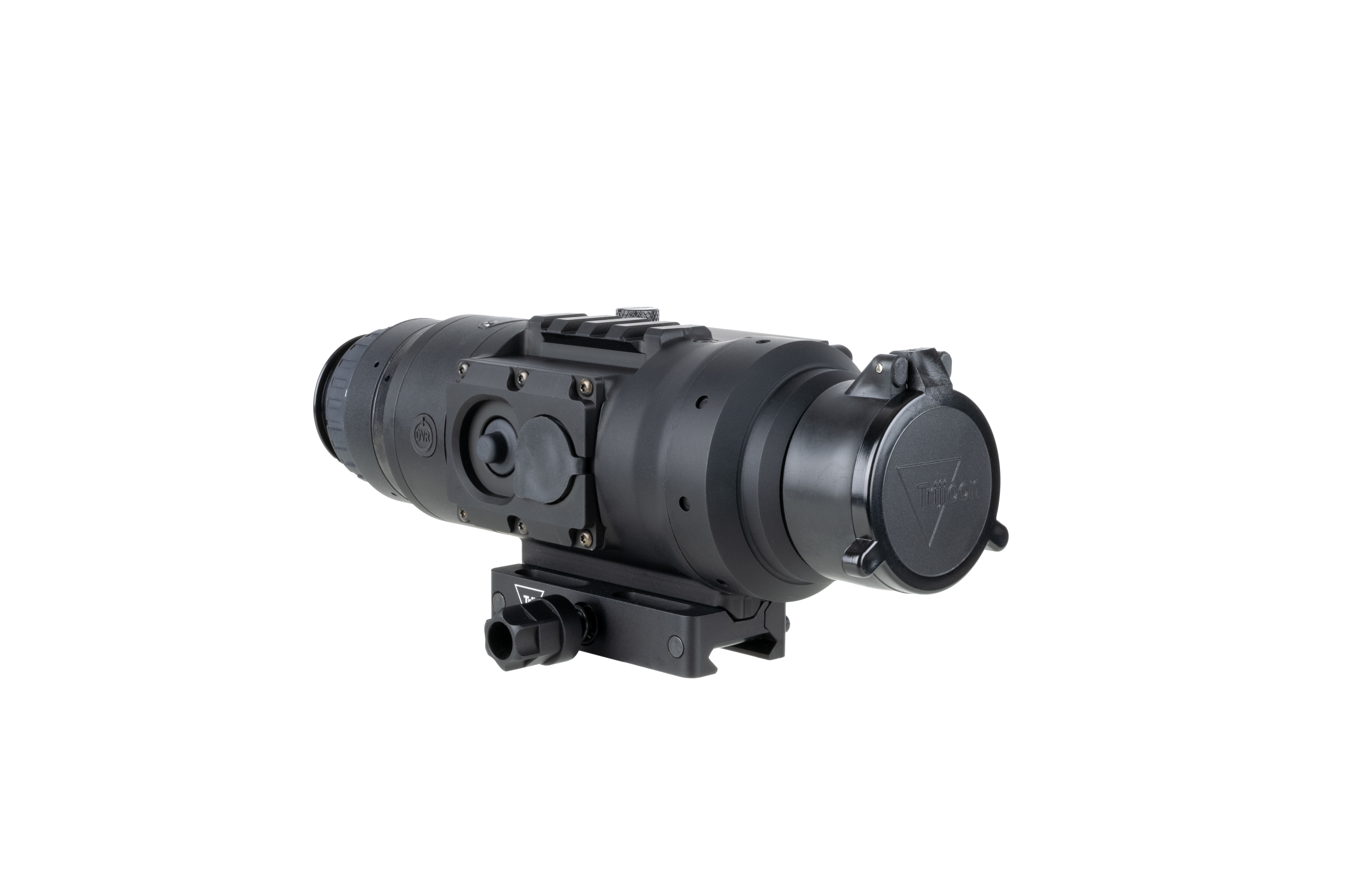

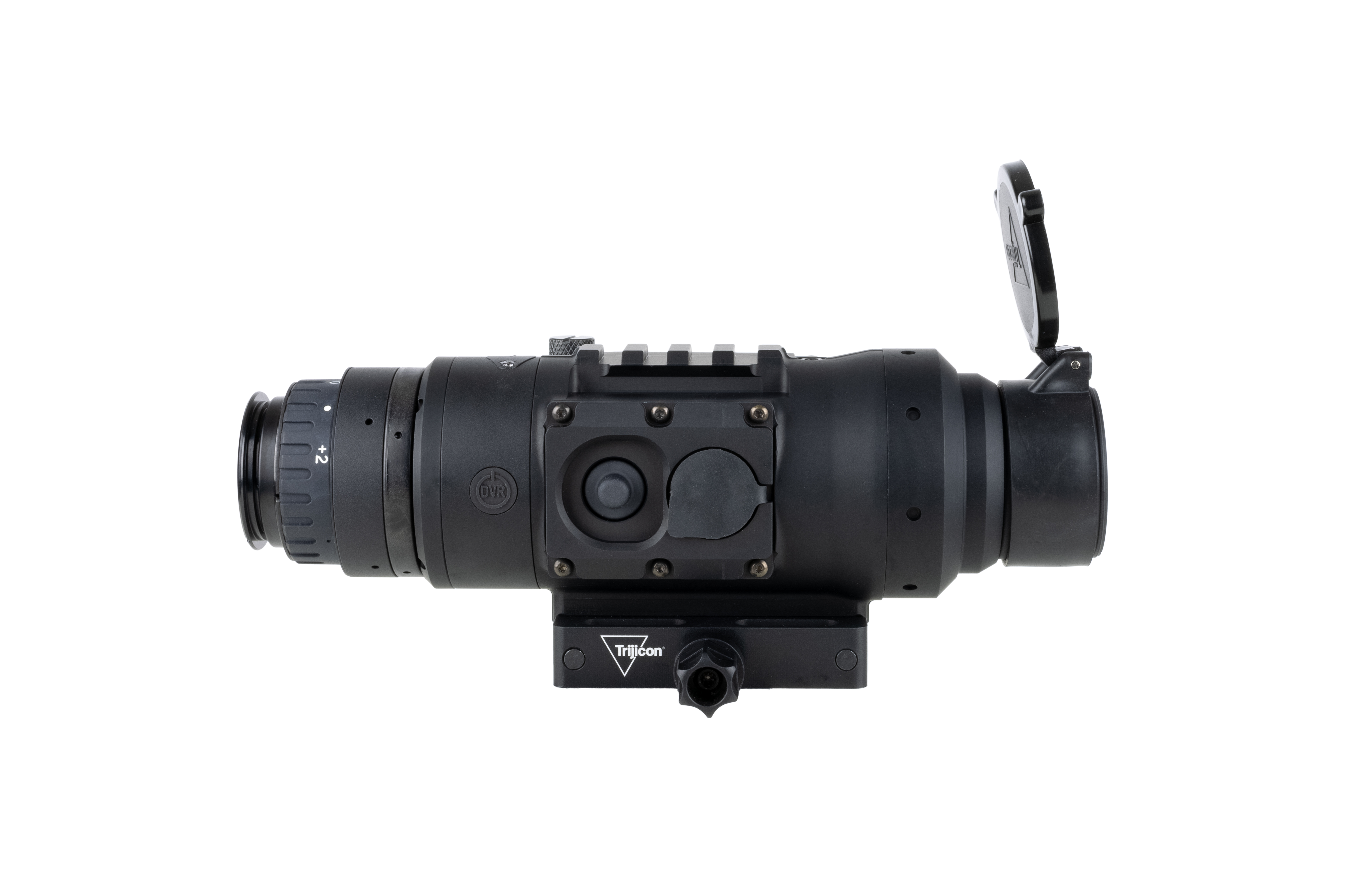

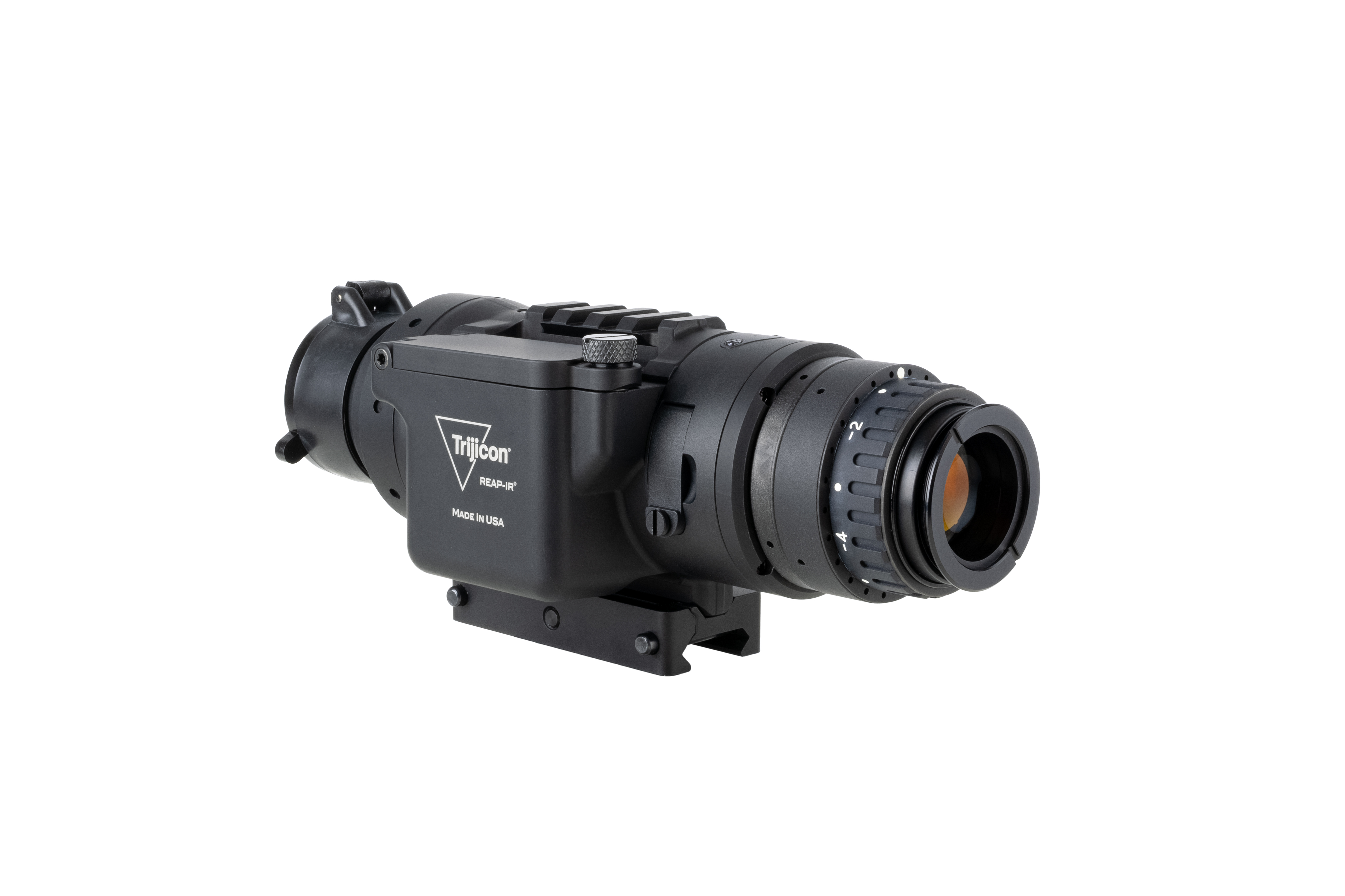

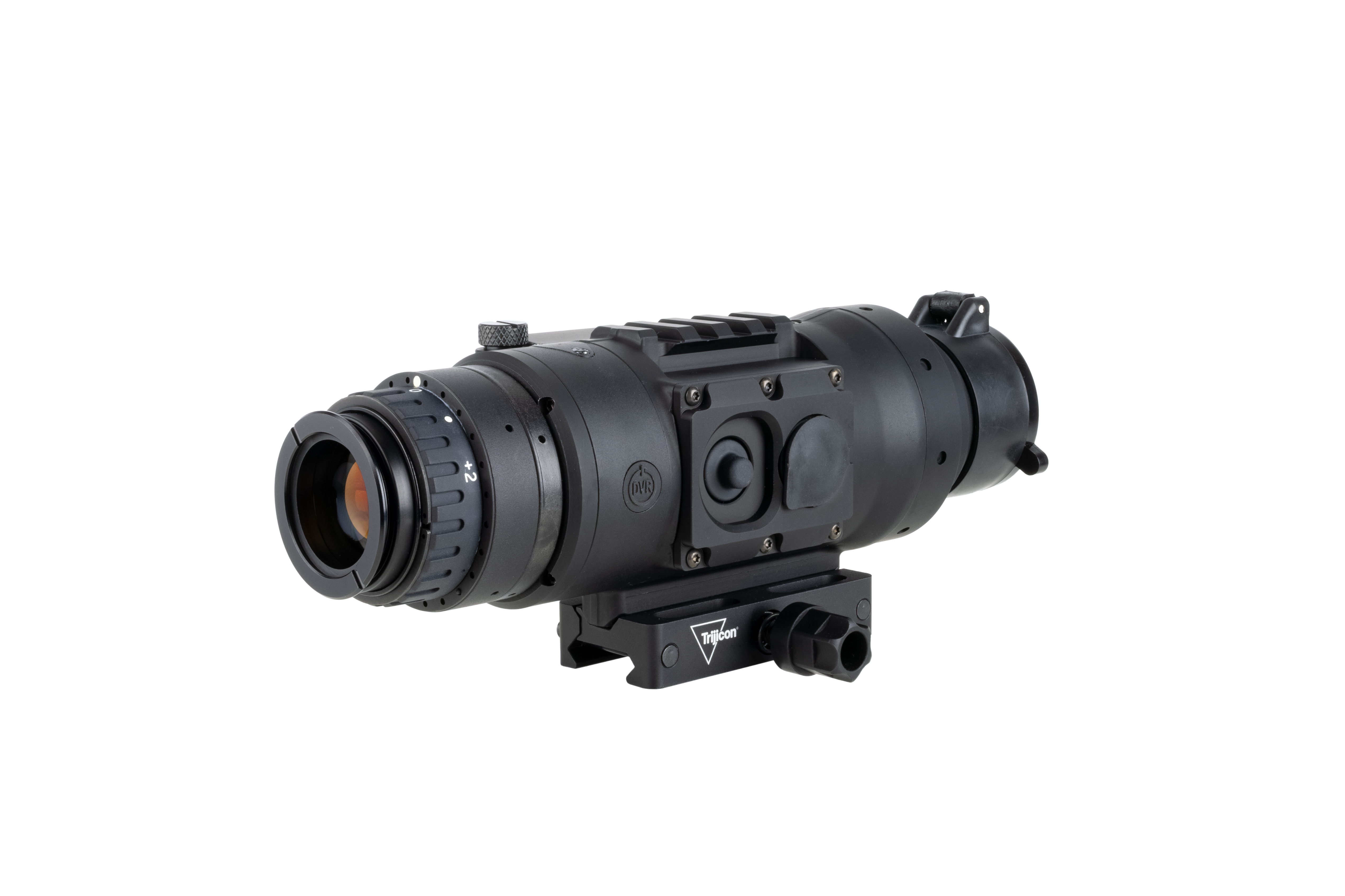

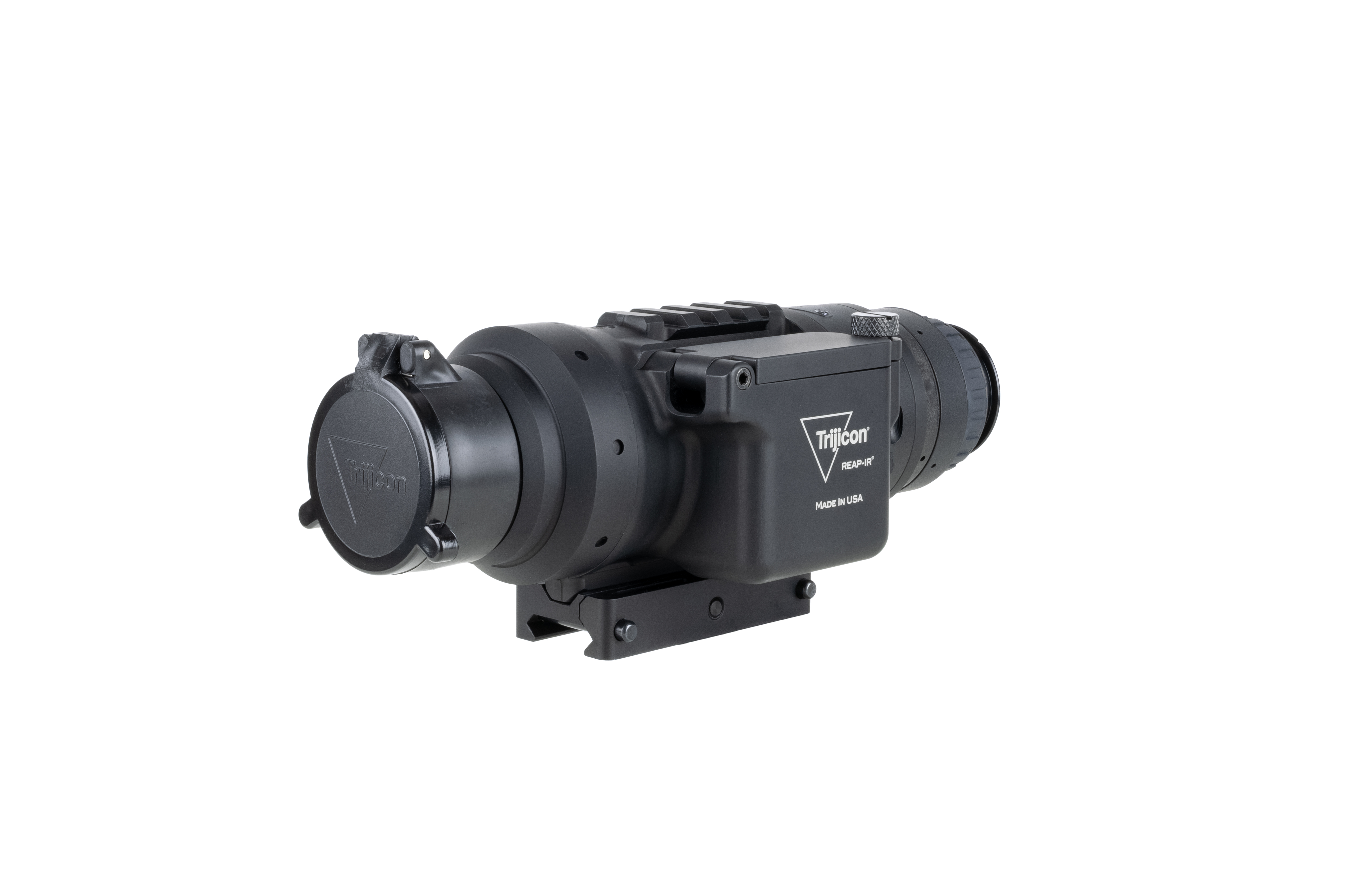

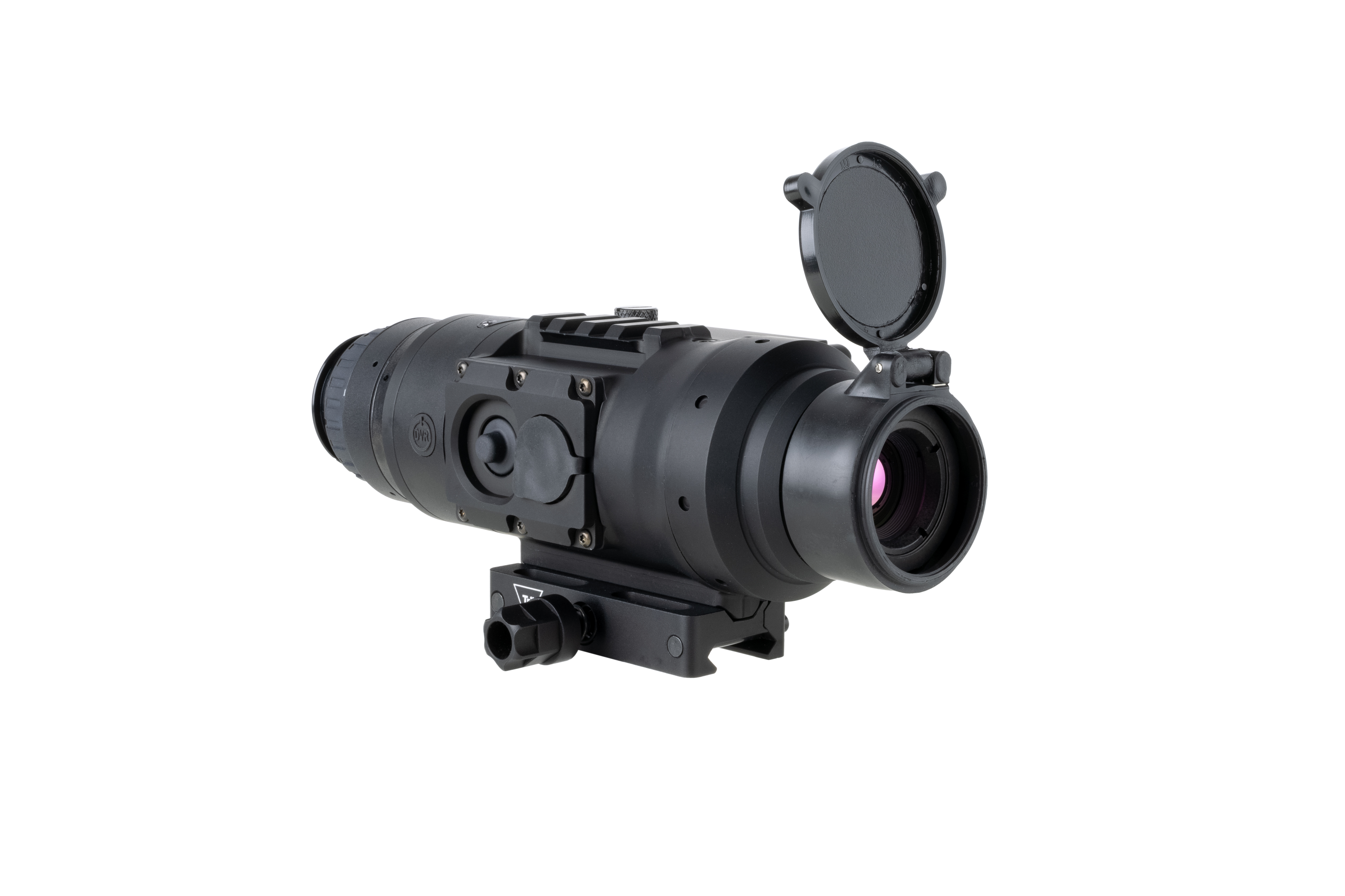

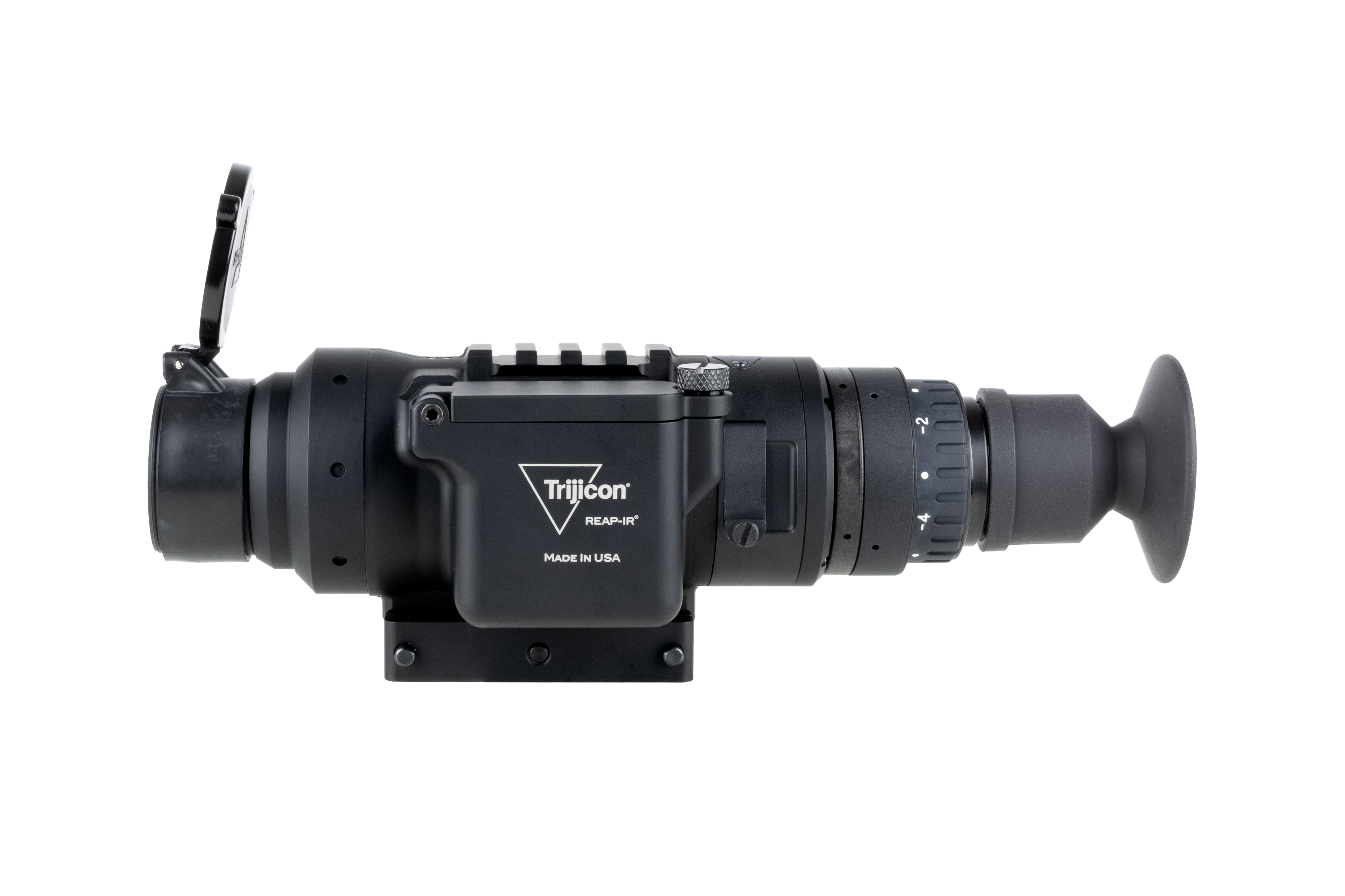

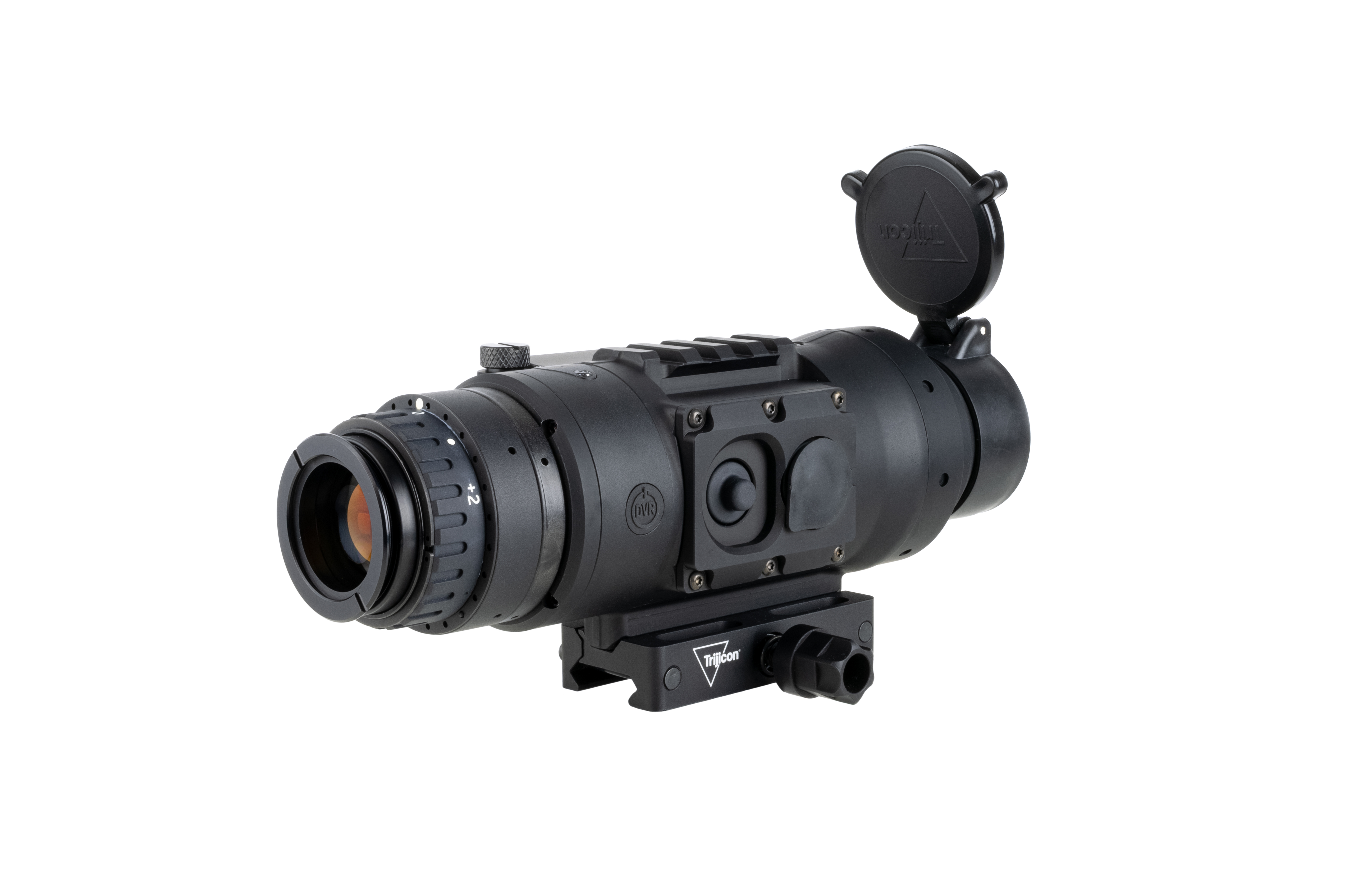

Trijicon REAP-IR 24 mm Thermal Riflescope with Onboard DVR

1.2x Base Magnification / 9.6x Combined Magnification

OVERVIEW

The REAP-IR® thermal riflescope is a small, rugged, and powerful thermal riflescope that lets you engage targets in any light. The heart of the system is a state-of-the art 640x480, 12 micron thermal image sensor that provides superior image quality in any lighting condition.  Redesigned electronic hardware and a new digital thumbstick improve system response and enable the use of external USB power sources and digital video recorders.  It's also built to last - in the USA.

REAP-24-4 reticle image

INCLUDES

    Q-LOC Mini Picatinny Rail Mount

    Onboard DVR
    USB-C to USB-C Cable
    User Manual
    Quick Reference Guide
    2 CR123 Batteries
    Trijicon Logo Sticker
    Shuttered Eye Guard
    Warranty Card
    LENSPEN
    Hard Case

SKU: REAP-24-4

RETAIL: $7,209.00

The REAP-IR® thermal riflescope is a small, rugged, and powerful thermal riflescope that lets you engage targets in any light. The heart of the system is a state-of-the art 640x480, 12 micron thermal image sensor that provides superior image quality in any lighting condition.  Redesigned electronic hardware and a new digital thumbstick improve system response and enable the use of external USB power sources and digital video recorders.  It's also built to last - in the USA.

THUMBSTICK SYSTEM CONTROLLER

THUMBSTICK SYSTEM CONTROLLER

Fully ruggedized, weatherproof, multi-directional thumbstick control with improved design for faster system response

ONBOARD DIGITAL VIDEO RECORDING

ONBOARD DIGITAL VIDEO RECORDING

New integrated DVR records 640x480 MP4 video to SD card, or external recorder can be attached via USB-C.

EXPANDED FUNCTIONALITY

EXPANDED FUNCTIONALITY

USB-C connector allows the use of external battery packs and download of analog and digital video with available adapter with compatible DVRs

TOP-LOADING BATTERY COMPARTMENT

TOP-LOADING BATTERY COMPARTMENT

Ruggedized, vertical design creates a slimmer look and is engineered for increased durability and solid battery connection

MOUNTING VERSATILITY

MOUNTING VERSATILITY

New quick release mount featuring Trijicon® Q-LOC™ Technology provides multiple mounting locations with the ability to affix the scope rapidly and reliably in the dark

IMPROVED RETICLE OPTIONS

IMPROVED RETICLE OPTIONS

User-selectable reticle choices include the classic crosshair, and new MRAD, MOA, .223 REM, .308 WIN, and 300BLK BDC

640x480 THERMAL SENSOR

640x480 THERMAL SENSOR

Offers clear, crisp imagery through smoke, dust and complete darkness.

12 MICRON TECHNOLOGY

12 MICRON TECHNOLOGY

Smaller image sensors allow for reduced size and weight and increased durability.

MADE IN THE USA

MADE IN THE USA

Built for shooters by shooters right here in America.

INDUSTRY-LEADING RESEARCH, DESIGN & TESTING

We are engineers at heart, like our founder, Glyn Bindon. Therefore, we are bound by a commitment to seek innovative aiming solutions that constantly redefine “brilliant.” This legacy of innovation is fed by what we call The Science of Brilliant®.

LEARN MORE ABOUT THE SCIENCE OF BRILLIANT®

TESTING PROCEDURES INCLUDE:

Alaska to Africa Tested Immersion Tested Solid Zero Tested Vibration Tested Drop Tested
Length x Width x Height
7.13 in x 2.9 in x 3.1 in
(181.1mm x 73.66mm x 78.74mm)
Weight
27.34 oz. (775.08g)
Magnification
1.2x
Objective Size
24mm
Reticle Pattern
MRAD, MOA, .223 BDC, .308 BDC, .300BLK BDC
Day Reticle Color
Auto Contrast B/W
Night Reticle Color
Auto Contrast B/W
Power Source
(2)CR123 or External USB-C
Battery Life
~4 hours
Eye Relief
1.063 in. (27mm)
Field of View (degrees)
18 degrees Horizontal°
Mount
Q-LOC Mini Picatinny Rail Mount
Diopter Range
-6 / +2
Housing Material
7075 T6 Aluminum
Finish
Matte Black Anodized
Submersion Depth
3.28 ft. (1m)
Operating Temperature
-31F to 122F (-35c to 50c)
Sensor Type
Vanadium Oxide
Digital Zoom
8X
Sensor Resolution
640x480
Sensor Pixel Pitch
12 µm
Focal Length
24 mm
Frame Rate
30Hz Hz / 60Hz Hz
Video Output
640-480 MJPEG, 30 hz

REAP-IR Spec Sheet

Download REAP-IR Spec Sheet DOWNLOAD
