NEW FOR 2026

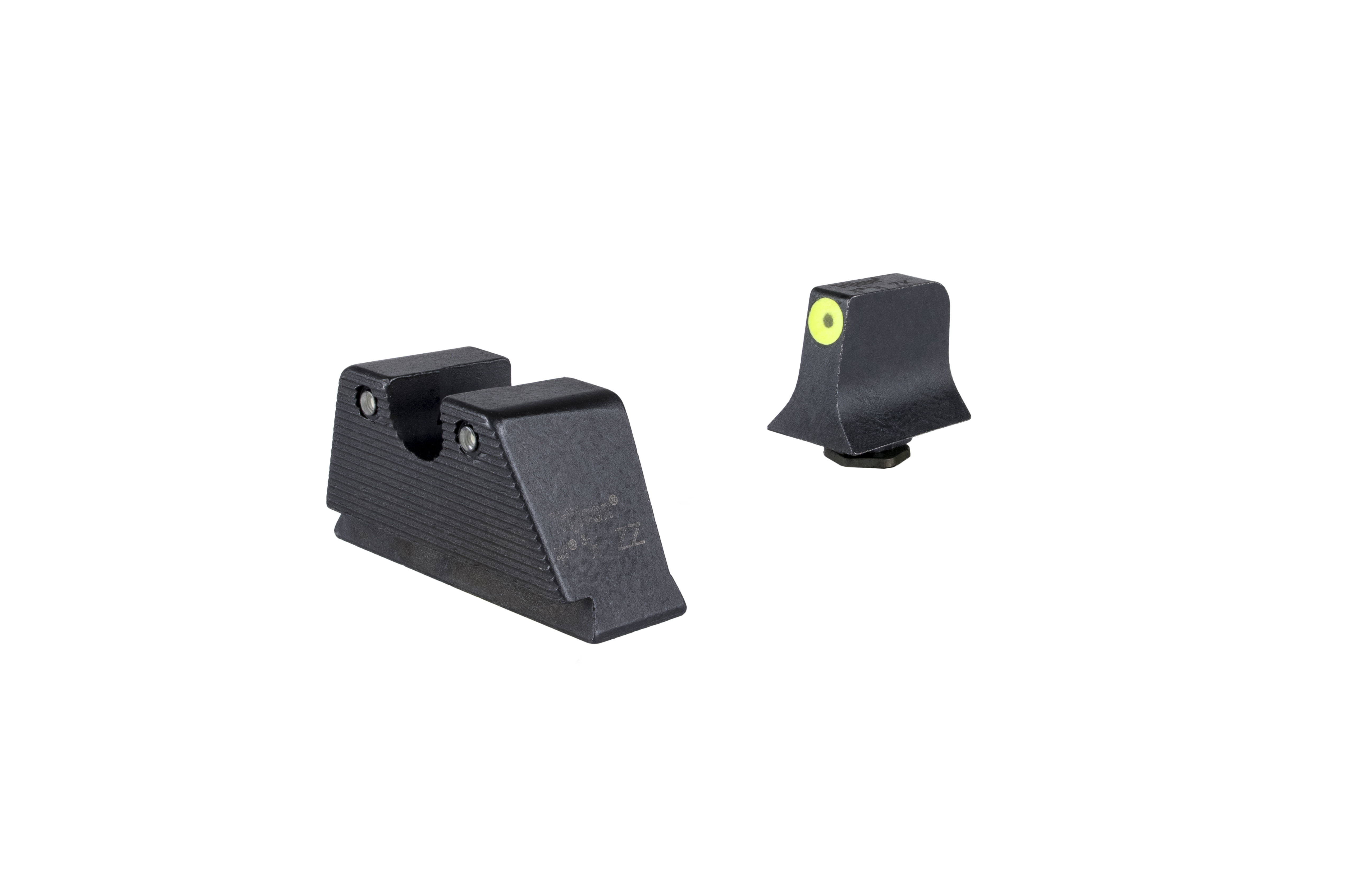

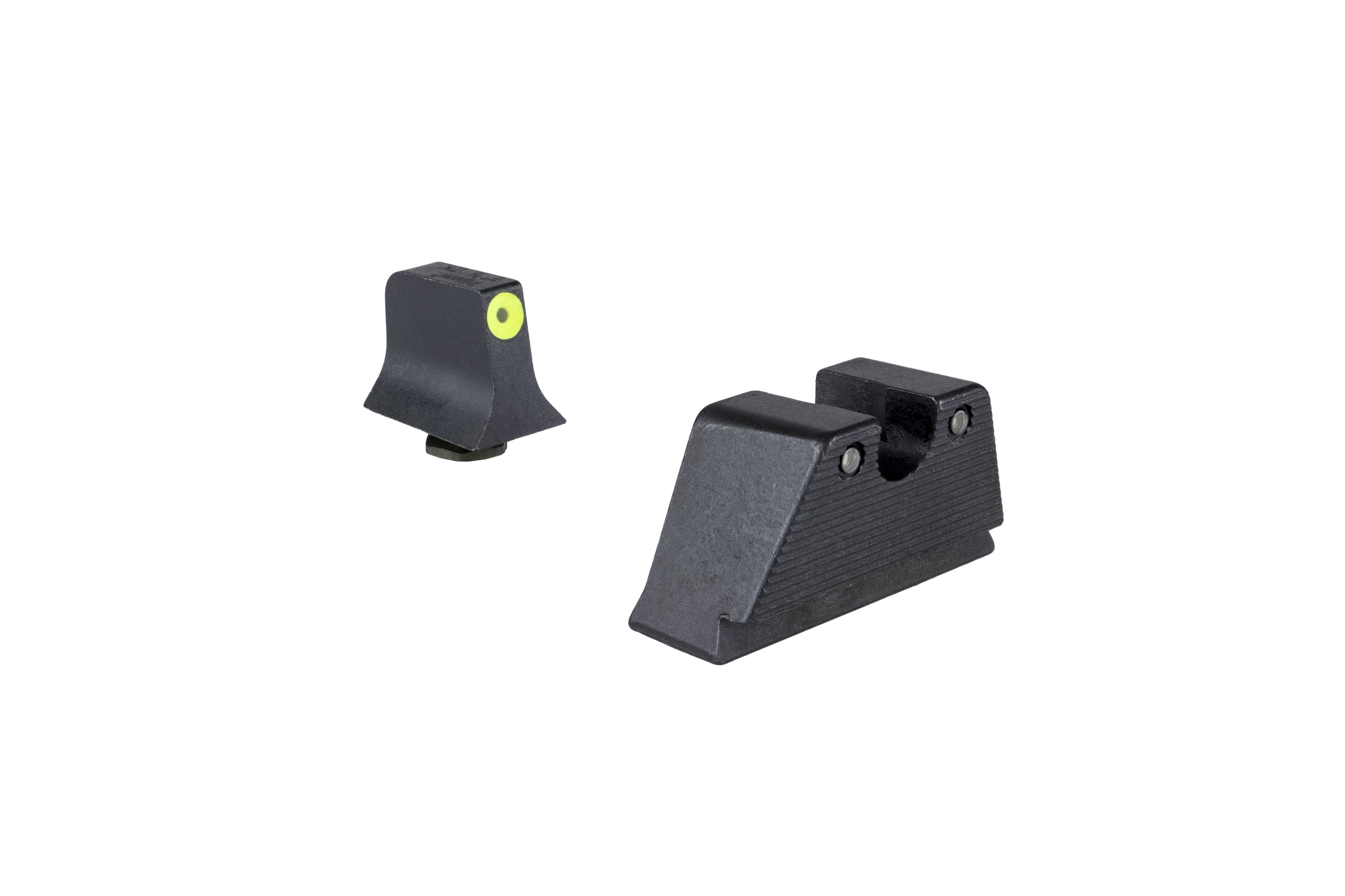

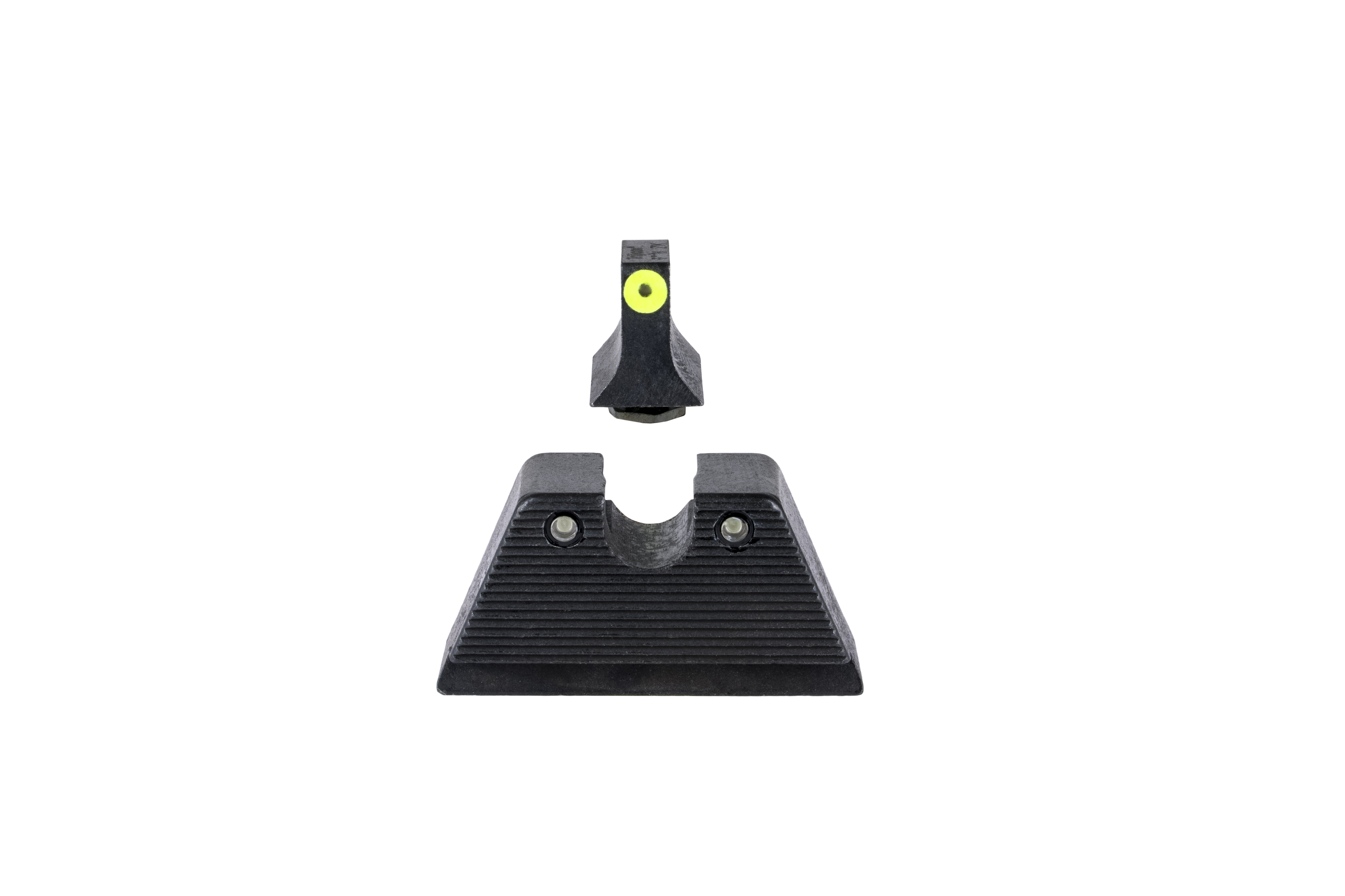

Trijicon® HD™XR Suppressor/Optic Height Sights - Glock Large Frames (MOS)

Front: Yellow Outline / Green Tritium, Rear: Black Outline / Green Tritium

OVERVIEW

Fits Glock®  20, 21, 29, 30, and 41 (including S and SF variants)

Trijicon® HD™XR Suppressor/Optic Height Sights bring all the features and benefits of the Trijicon HD XR Night Sights in a Suppressor and Optic Compatible height. The Trijicon HD XR sghts were specifically designed with the ever evolving challenges of law enforcement agencies in mind. Building on the features of the current HD™ Night Sights, the Trijicon HD XR™ night sights are for the next level of advanced target identification and engagement at increased distances. A thinner front sight post allows shooters to have a larger field of view which further enhances the ability to identify targets, expedite engagements and see location of hits on target at longer distances. The Optic/Suppressor HD XR Night Sights will clear the added height of a suppressor, allowing shooters the ability to line up their sights on target. Additionally, suppressor night sights can be used as back up iron sights with a Trijicon red dot.. Green lamps are warranted for 12 years from the date of manufacture.

NOTE: Professional installation recommended. Dimensions for reference only

GL345-C-601177 reticle image

INCLUDES

    1 - Front Sight
    1 - Rear Sight
    1 - Front Sight Screw

SKU: GL345-C-601177

RETAIL: $192.00

FIND A DEALER

Fits Glock®  20, 21, 29, 30, and 41 (including S and SF variants)

Trijicon® HD™XR Suppressor/Optic Height Sights bring all the features and benefits of the Trijicon HD XR Night Sights in a Suppressor and Optic Compatible height. The Trijicon HD XR sghts were specifically designed with the ever evolving challenges of law enforcement agencies in mind. Building on the features of the current HD™ Night Sights, the Trijicon HD XR™ night sights are for the next level of advanced target identification and engagement at increased distances. A thinner front sight post allows shooters to have a larger field of view which further enhances the ability to identify targets, expedite engagements and see location of hits on target at longer distances. The Optic/Suppressor HD XR Night Sights will clear the added height of a suppressor, allowing shooters the ability to line up their sights on target. Additionally, suppressor night sights can be used as back up iron sights with a Trijicon red dot.. Green lamps are warranted for 12 years from the date of manufacture.

NOTE: Professional installation recommended. Dimensions for reference only

INCREASED HEIGHT TO ACCOMMODATE MULTIPLE SHOOTING APPLICATIONS

INCREASED HEIGHT TO ACCOMMODATE MULTIPLE SHOOTING APPLICATIONS

Specifically engineered to be as robust as possible while still allowing use with a suppressor or as backup iron sights for a slide-mounted red dot sight, such as the Trijicon RMR®.

INSTANTLY VISIBLE SIGHT PICTURE IN NO-LIGHT AND LOW-LIGHT SITUATIONS

INSTANTLY VISIBLE SIGHT PICTURE IN NO-LIGHT AND LOW-LIGHT SITUATIONS

Tritium phosphor-filled glass lamp provides battery-free glow, allowing for a visible sight picture in all lighting situations.

INCREASED DAYLIGHT DOT VISIBILITY

INCREASED DAYLIGHT DOT VISIBILITY

White-painted rings around tritium lamps enhance user’s ability to see sight picture in bright-light shooting situations.

ENHANCED PROTECTION FROM HEAVY RECOIL AND HARSH CLEANING SOLVENTS

ENHANCED PROTECTION FROM HEAVY RECOIL AND HARSH CLEANING SOLVENTS

Tritium gas lamps are contained within protective aluminum cylinders and have additional silicone rubber cushioning.

EVENLY DISTRIBUTED LIGHT FROM TRITIUM LAMPS

EVENLY DISTRIBUTED LIGHT FROM TRITIUM LAMPS

Each Trijicon® tritium lamp is capped with a sapphire jewel that helps evenly distribute the light from the lamp and also acts as an additional layer of protection from puncture and cleaning solvents.

INDUSTRY-LEADING RESEARCH, DESIGN & TESTING

We are engineers at heart, like our founder, Glyn Bindon. Therefore, we are bound by a commitment to seek innovative aiming solutions that constantly redefine “brilliant.” This legacy of innovation is fed by what we call The Science of Brilliant®.

LEARN MORE ABOUT THE SCIENCE OF BRILLIANT®

TESTING PROCEDURES INCLUDE:

Alaska to Africa Tested Solid Zero Tested Vibration Tested Drop Tested
specs specs
Weight
0.42 oz. (11.91g)
Housing Material
Steel
Fits Make
Glock®
Fits Model

20, 21, 29, 30, and 41 (including S and SF variants)

Front Lamp Color
Green
Rear Lamp Color
Green
Front Paint Color
Yellow
Rear Paint Color
Black
Front Blade Width
0.122 in. (3.09mm)
Front Blade Height
0.35 in. (8.88mm)
Rear Notch Style
U-Notch
Rear Notch Width
0.169 in. (4.29mm)
Rear Blade Height
0.361 in. (9.16mm)
Overall Rear Height
0.451 in. (11.45mm)

ADDITIONAL OPTIONS 1

Trijicon® HD™XR Suppressor/Optic Height Sights - Glock Large Frames (MOS)

GL345-C-601176

Front: Orange Outline / Green Tritium, Rear: Black Outline / Green Tritium

Retail: $192.00

DETAILS
